Brand: 3M

Color: Black

Features:

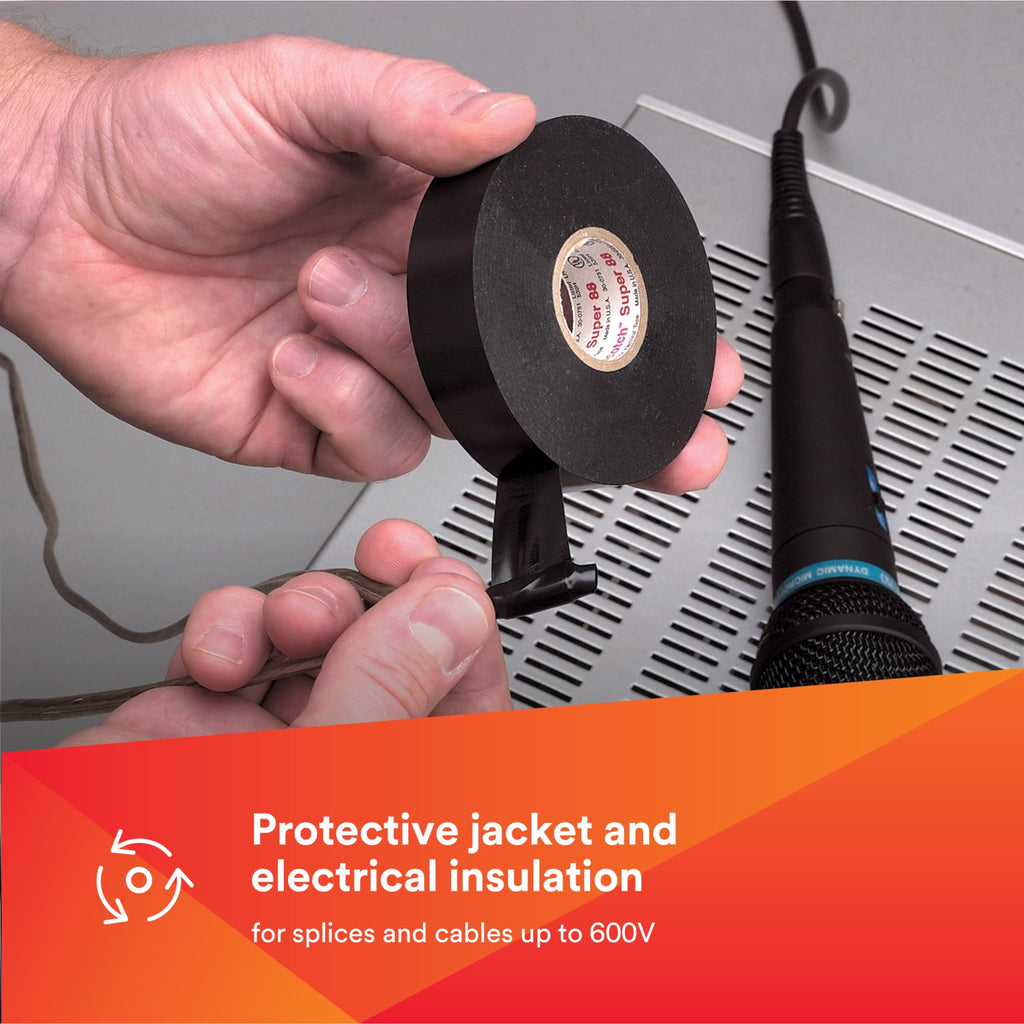

• RELIABLE PERFORMANCE: Provides a protective jacket and primary electrical insulation for splices up to 600V in harsh indoor, extreme, and exposed outdoor applications
• ENDURES THE ELEMENTS: Protects in extreme environments, making it a reliable solution for long-lasting performance
• MULTI-PURPOSE: Excels in low-voltage primary and secondary insulation, cable jacketing, mechanical protection, and padding

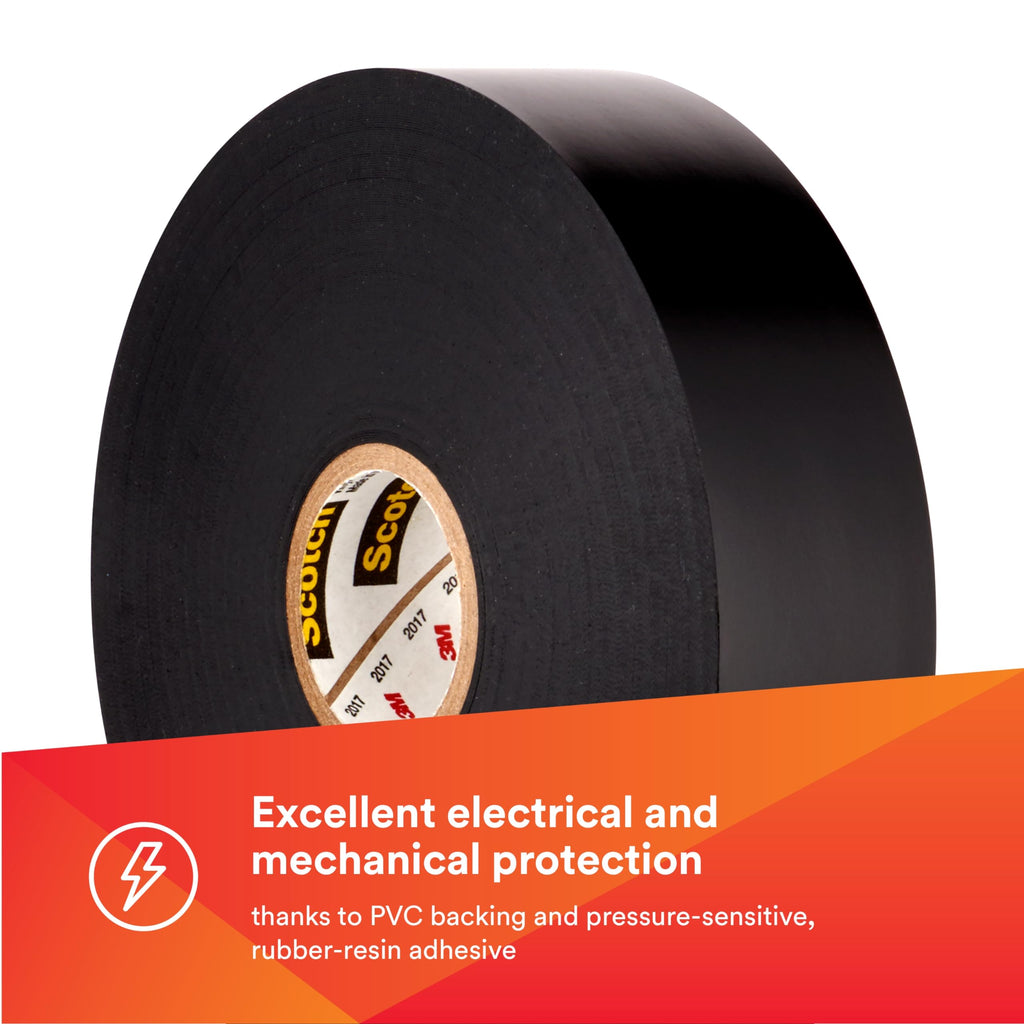

• BUILT STRONG: Engineered with a rubber-resin adhesive, PVC backing, and heavy tape thickness for excellent electrical and mechanical protection that promotes faster build-up with fewer wraps
• ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes

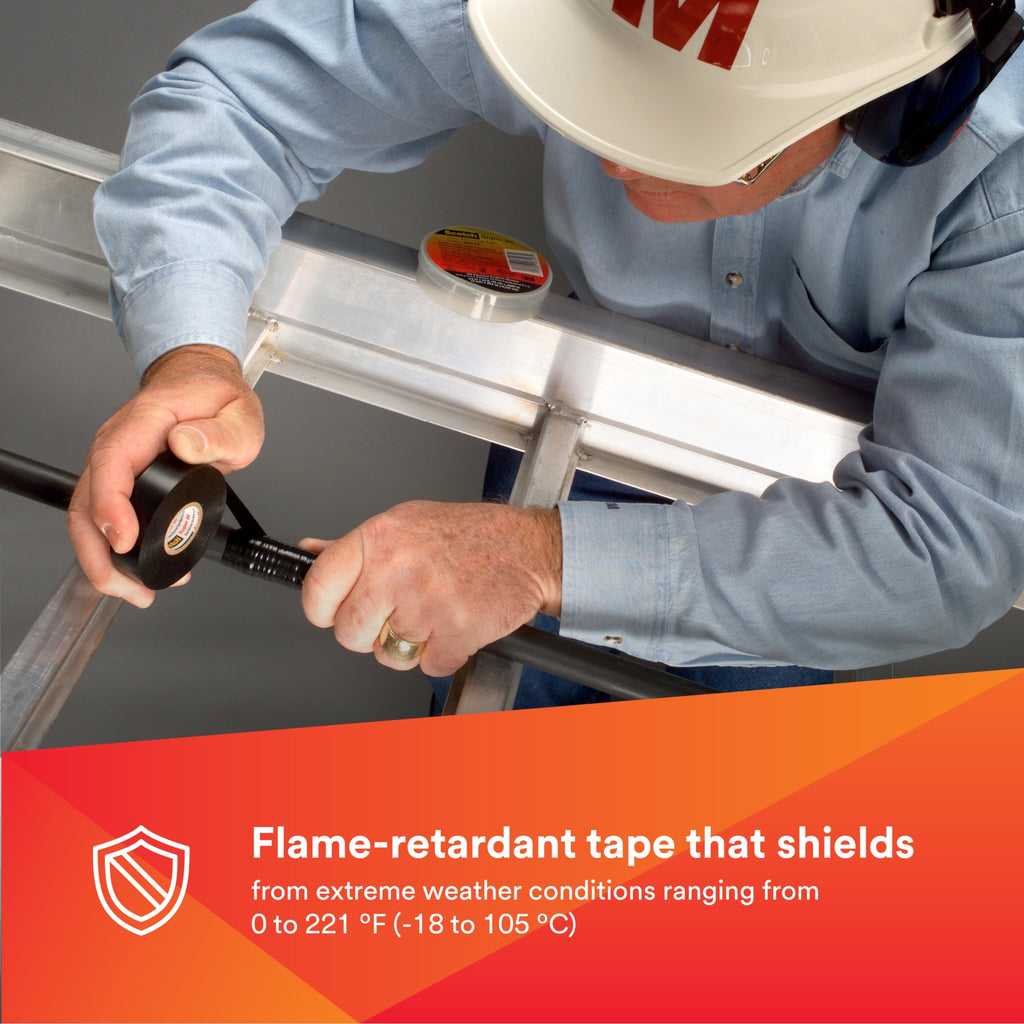

• TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
• HIGHLY COMPATIBLE: Works with solid dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
• SPECIFICATIONS: Meets the standard for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, compliant with IEC 60454-3-1-7/F-PVCP/90, and RoHS, and is flame retardant, sunlight, cold resistant per (UL510) standards
• For industrial/occupational use only. Not for consumer sale or use.

Release Date: 12-03-2017

model number: 88-SUPER-1X36YD

Part Number: 88-1X36YD

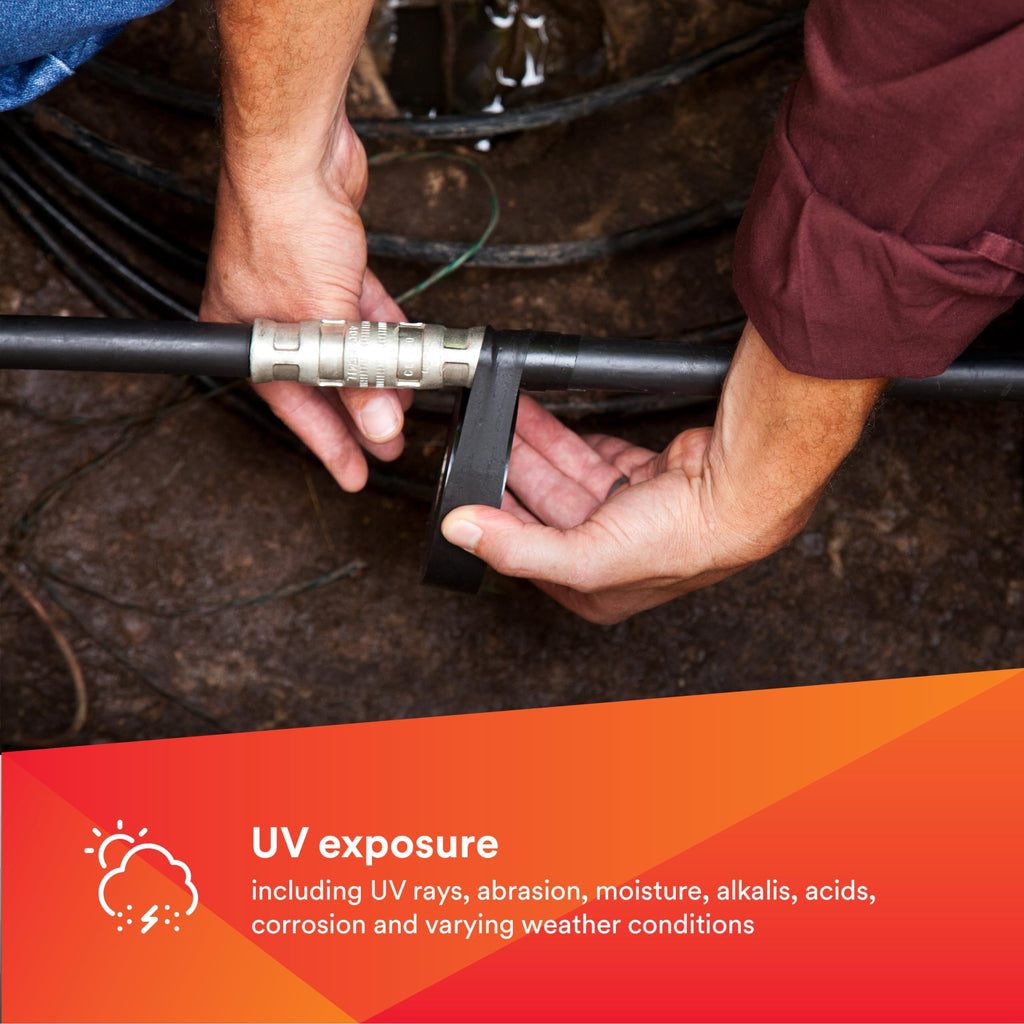

Details: Scotch Vinyl Electrical Tape Super 88 is an all-weather, premium-grade tape created to provide a protective jacket and primary electrical insulation for splices up to 600V, with a total thickness of 8.5 mil (0.216 mm) when applied. The thickness of the tape broadens the range of applications, particularly heavy-duty operations. This tape is engineered with pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its strength and reliability, excelling in extreme indoor and outdoor conditions to help protect electrical conductors from UV exposure. Whether the application involves low-voltage primary or secondary insulation, cable jacketing, or mechanical protection and padding, Scotch Vinyl Electrical Tape Super 88 offers excellent insulation and adhesion properties. Meeting the requirements for flame retardancy, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C) and is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90, IEC 60454-3-1-7/F-PVCP/90 Certified, and RoHS Compliant. Discover this tape for reliable environmental protection and performance.

EAN: 0054007103318

Package Dimensions: 4.3 x 4.3 x 1.1 inches
