Brand: EFFICERE

Features:

• [ALL-IN-ONE SET]: This is a master tap & die set that includes a full range of SAE standard and Metric sizes from small to large with both coarse and fine teeth, designed for all kinds of internal and external threading, rethreading, or thread repairs jobs
• [PREMIUM MATERIAL AND COATING]: Industrial grade high speed steel (HSS) construction with unique titanium coating provides maximum strength and lasts 3 times longer than normal ground finished tap die for rust and corrosion prevention
• [EXCELLENT CUTTING PERFORMANCE]: All cutting teeth are precisely CNC machined and accurately heat treated to Rockwell hardness 60 HRC for best threading performance on a wide range of materials such as wood, carbon steel, cast iron, aluminum, brass, copper, stainless steel

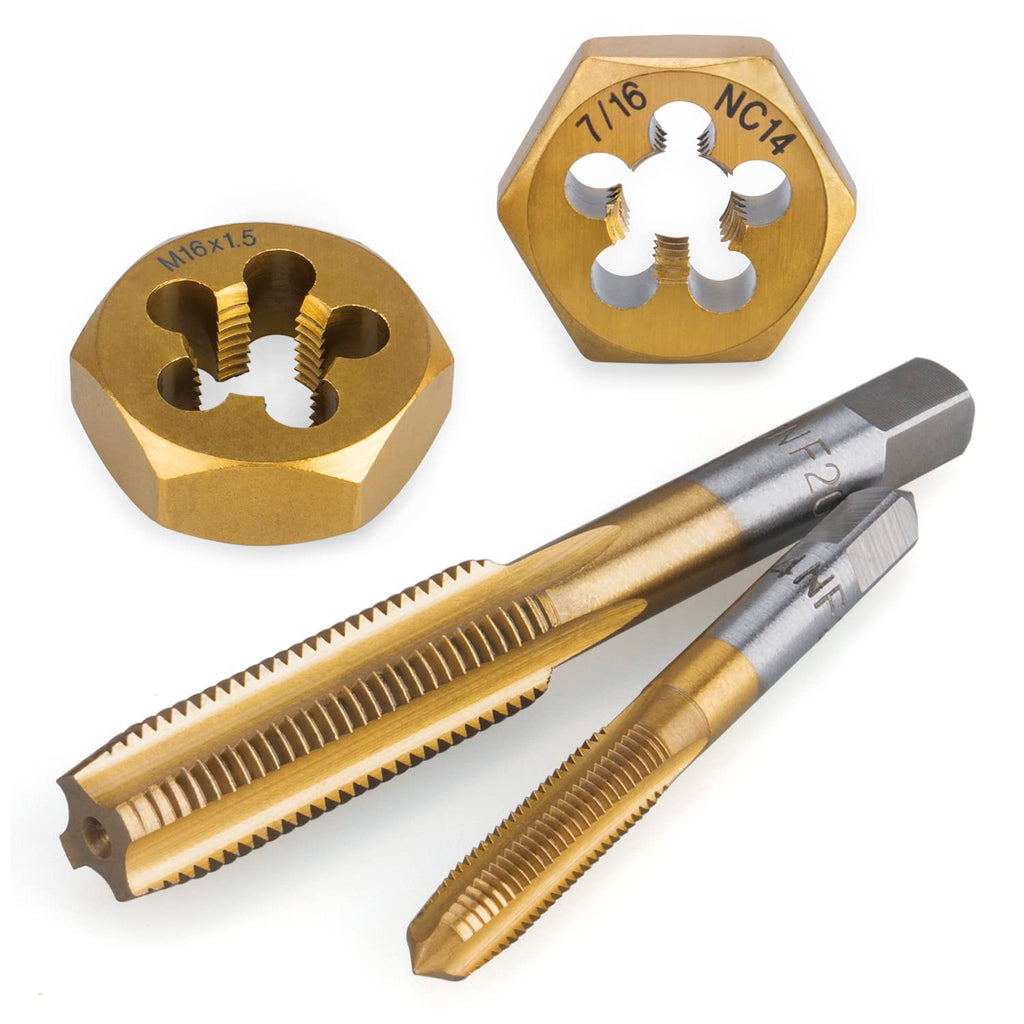

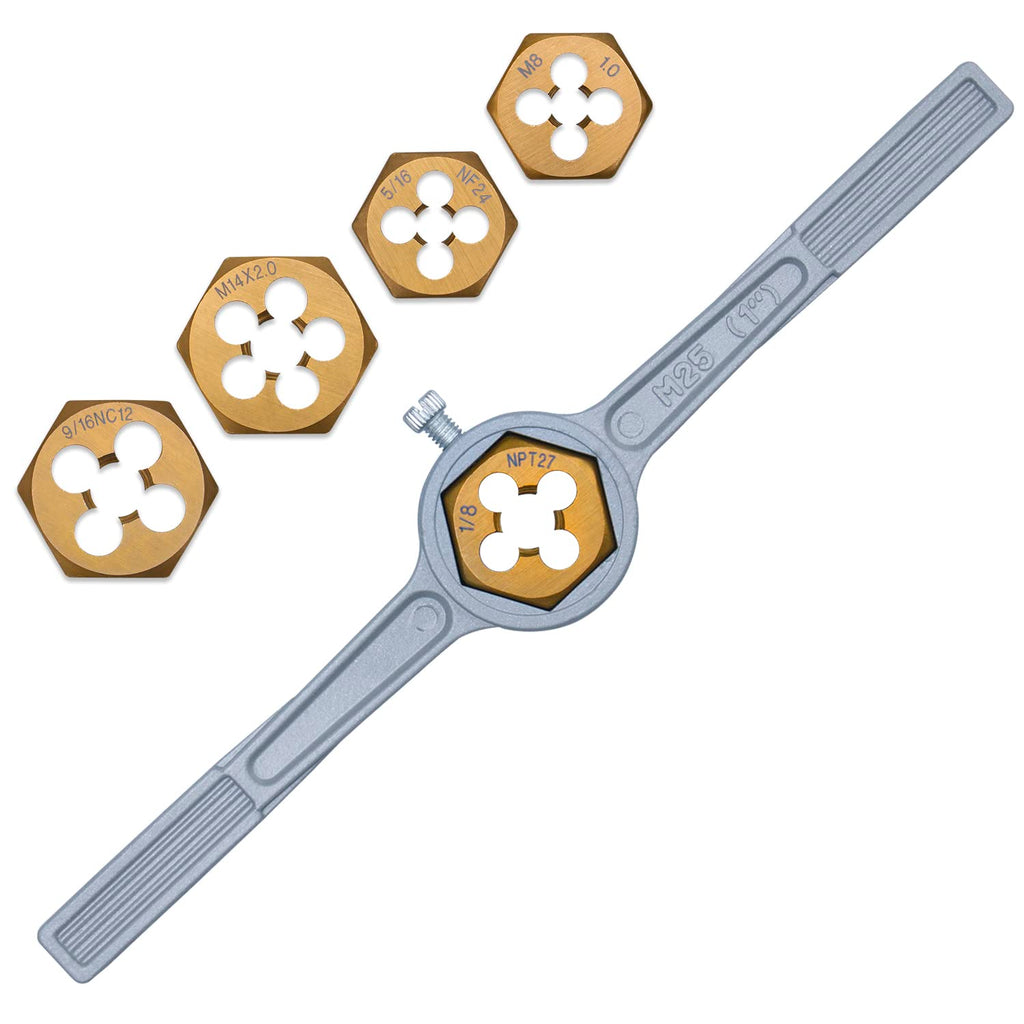

• [HEXAGONAL SHAPE DIES]: Hex dies can be used with wrenches and sockets for added leverage, so they work much better than round dies for greater torque applications and in tight spaces. Hexagon dies fit both needs to create new thread or chase old thread, while round dies are usually to create thread only
• [COMPLETE SIZE COVERAGE]: Set includes (42) SAE standard and (36) metric taps and dies from small to large: #4x40, #6x32, #8x32, #10x32, #10x24, #12x24, 1/4x28, 1/4x20, 5/16x24, 5/16x18, 3/8x24, 3/8x16, 7/16x20, 7/16x14, 1/2x20, 1/2x13, 9/16x18, 9/16x12, 5/8x18, 5/8x11, 1/8x27NPT; M3x0.5, M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.0, M8x1.25, M9x1.25, M10x1.25, M10x1.5, M11x1.25, M11x1.5, M12x1.5, M12x1.75, M14x1.5, M14x2, M16x1.5, M16x2

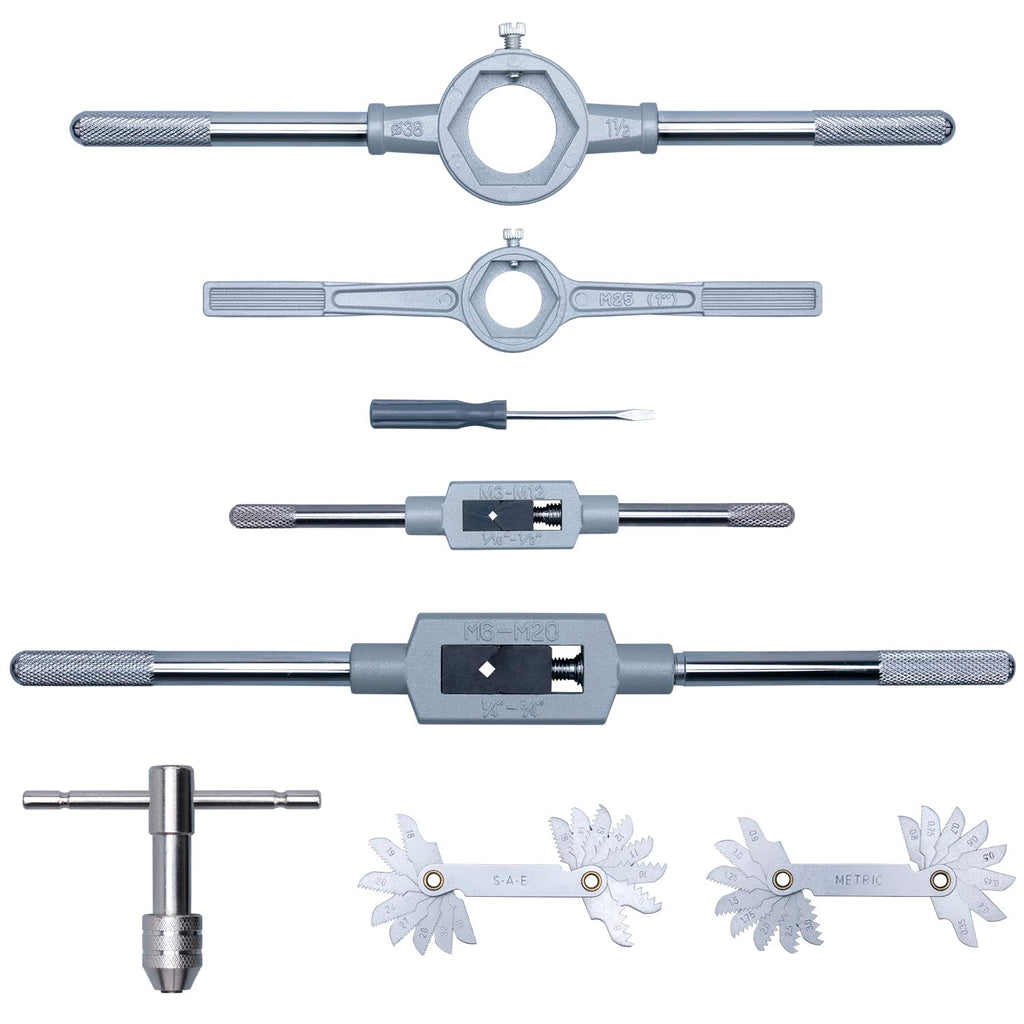

• [COMPREHENSIVE ACCESSORIES]: Set comes with (1) Large Size Adjustable Tap Handle; (1) Small Size Adjustable Tap Handle; (1) T-type Tap Handle; (1) Large Size Die Stock; (1) Small Size Die Stock; (2) Thread Pitch Gauges; (1) Slotted Screwdriver; (1) Metal Storage and Carry Case

model number: PT-009

Part Number: PT-009

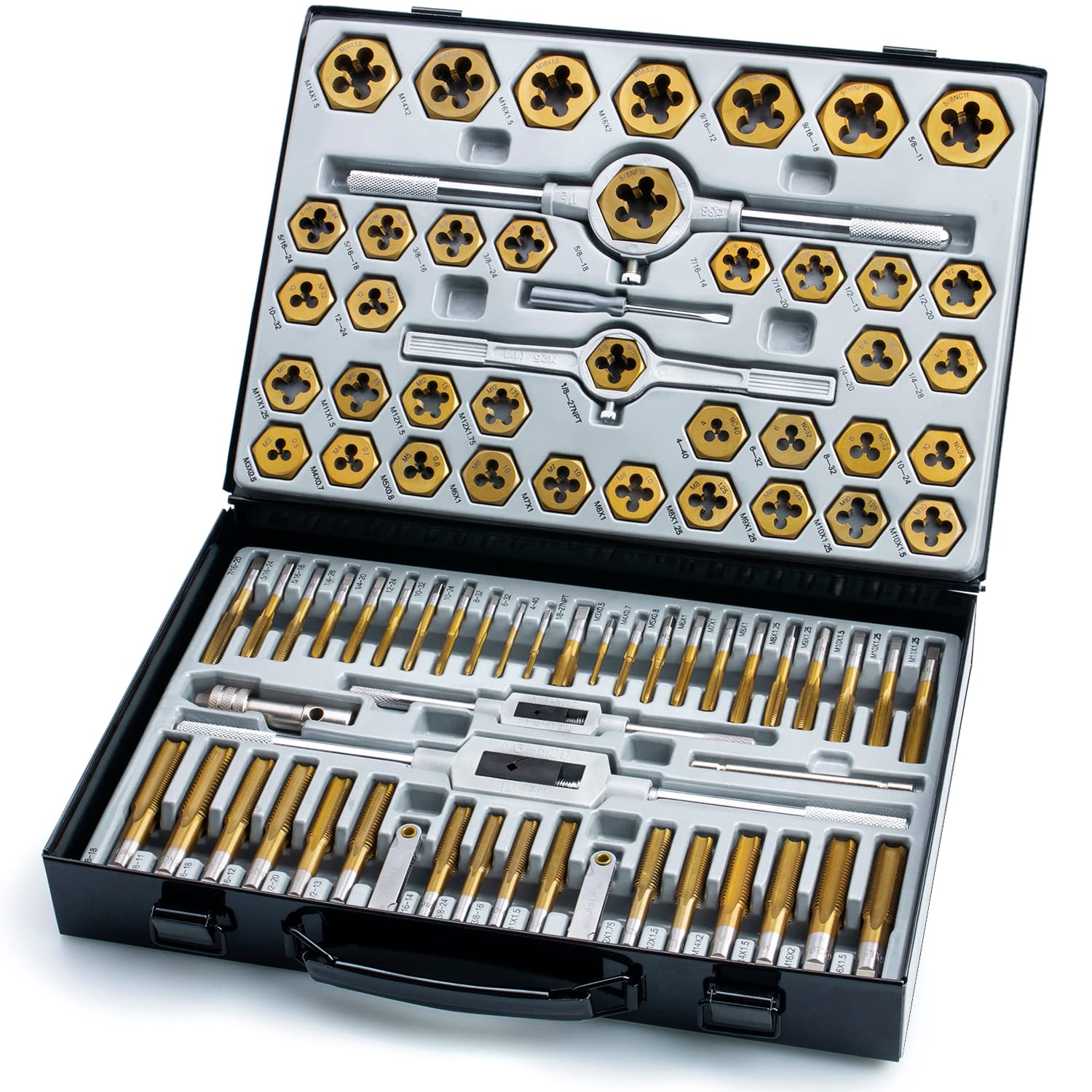

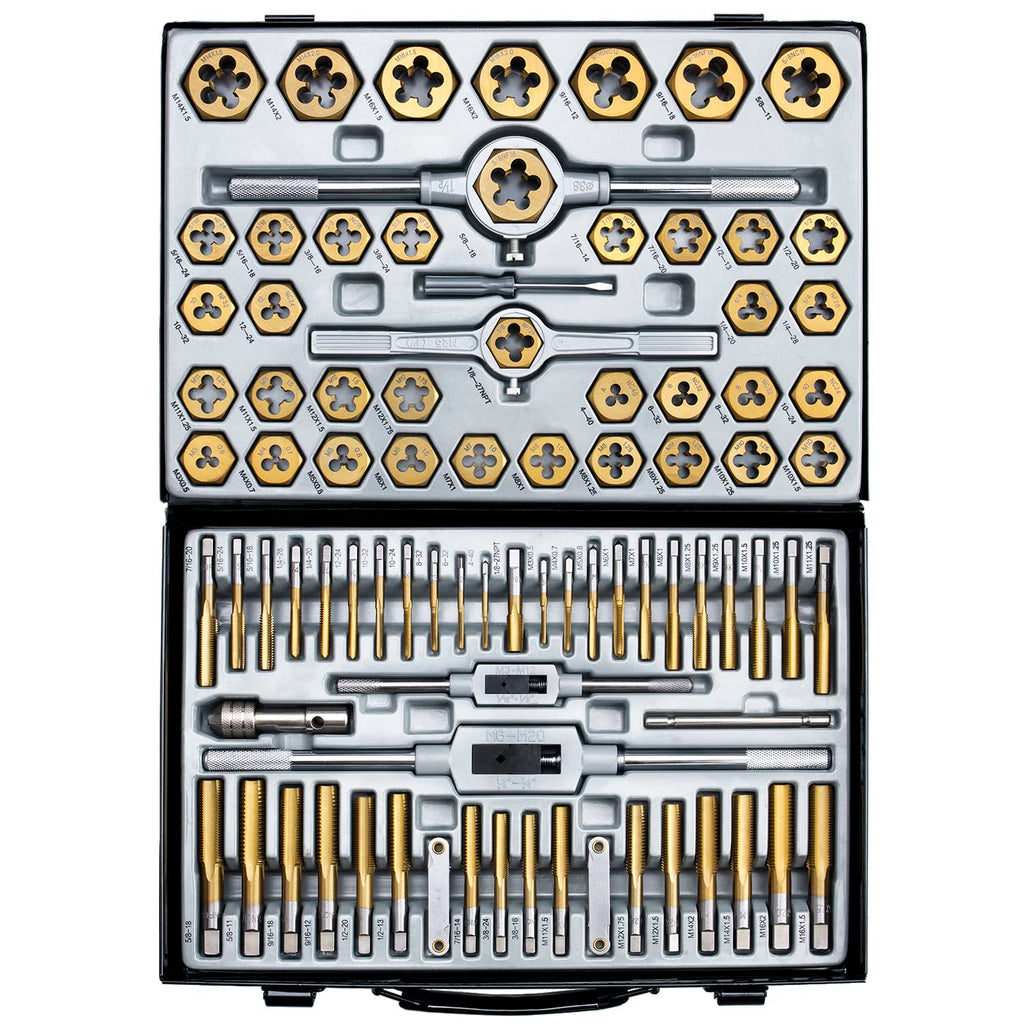

Details: EFFICERE 86-Piece Titanium Master Tap and Die Set in combined SAE Fractional and Metric sizes is your best choice for hand threading and rethreading jobs at home, garage, shop or work sites. This set is ideal for a wide range of applications, such as auto and mechanical repairs, metal fabrication, machinery, plumbing, commercial HVAC, mill wright and a lot more. It perfectly serves multiple functions to cut new threads, chase / renew existing threads, or repair damaged threads.

All of the taps and dies are crafted from industrial grade high speed steel (HSS) for maximum strength and durability, and cut through a full range of metal pipes and rods made from carbon steel, cast iron, stainless steel, aluminum, brass, copper and more.

Key Product Features:

▲ Premium titanium coating is 3 times more durable than other tap and die sets
▲ Industrial grade high speed steel (HSS) material provides maximum strength and best cutting performance
▲ Hexagonal dies work much better than round dies for greater torque applications and thread repair jobs.
▲ Plug style taps are designed with 3 to 5 beveled threads for easier starting and less turning efforts.
▲ Include larger SAE sizes up to 5/8” and larger Metric sizes up to M16 that are not available from most tap and die sets in the market
▲ Come with a professional heavy duty metal case for organized storage and portable carrying

Product Contents:

▲ (24-Pc.) SAE Taps and Dies for Coarse Threads: #4-40 NC, #6-32 NC, #8-32 NC, #10-24 NC, #12-24 NC, 1/4”-20 NC, 5/16”-18 NC, 3/8”-16 NC, 7/16”-14 NC, 1/2”-13 NC, 9/16”-12 NC, 5/8”-11 NC
▲ (16-Pc.) SAE Taps and Dies for Fine Threads: #10-32 NF, 1/4”-28 NF, 5/16”-24 NF, 3/8”-24 NF, 7/16”-20 NF, 1/2-20” NF, 9/16”-18 NF, 5/8”-18 NF
▲ (24-Pc.) Metric Taps and Dies for Coarse Threads: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0, M7 x 1.0, M8 x 1.25, M9 x 1.25, M10 x 1.5, M11 x 1.5, M12 x 1.75, M14 x 2.0, M16 x 2.0
▲ (12-Pc.) Metric Taps and Dies for Fine Threads: M8 x 1.0, M10 x 1.25, M11 x 1.25, M12 x 1.5, M14 x 1.5, M16 x 1.5
▲ (2-Pc.) Tap and Die for Pipe Threads: 1/8 NPT 27
▲ (1-Pc.) Large Adjustable Tap Wrench
▲ (1-Pc.) Small Adjustable Tap Wrench
▲ (1-Pc.) T-Handle Tap Wrench
▲ (1-Pc.) Large Die Stock
▲ (1-Pc.) Small Die Stock
▲ (1-Pc.) Mini Screw Driver
▲ (2-Pc.) Thread Pitch Gauges
▲ (1-Pc.) Metal Storage and Carry Case

EAN: 0858574007631

Package Dimensions: 15.0 x 10.6 x 2.3 inches
