Brand: BOJACK

Features:

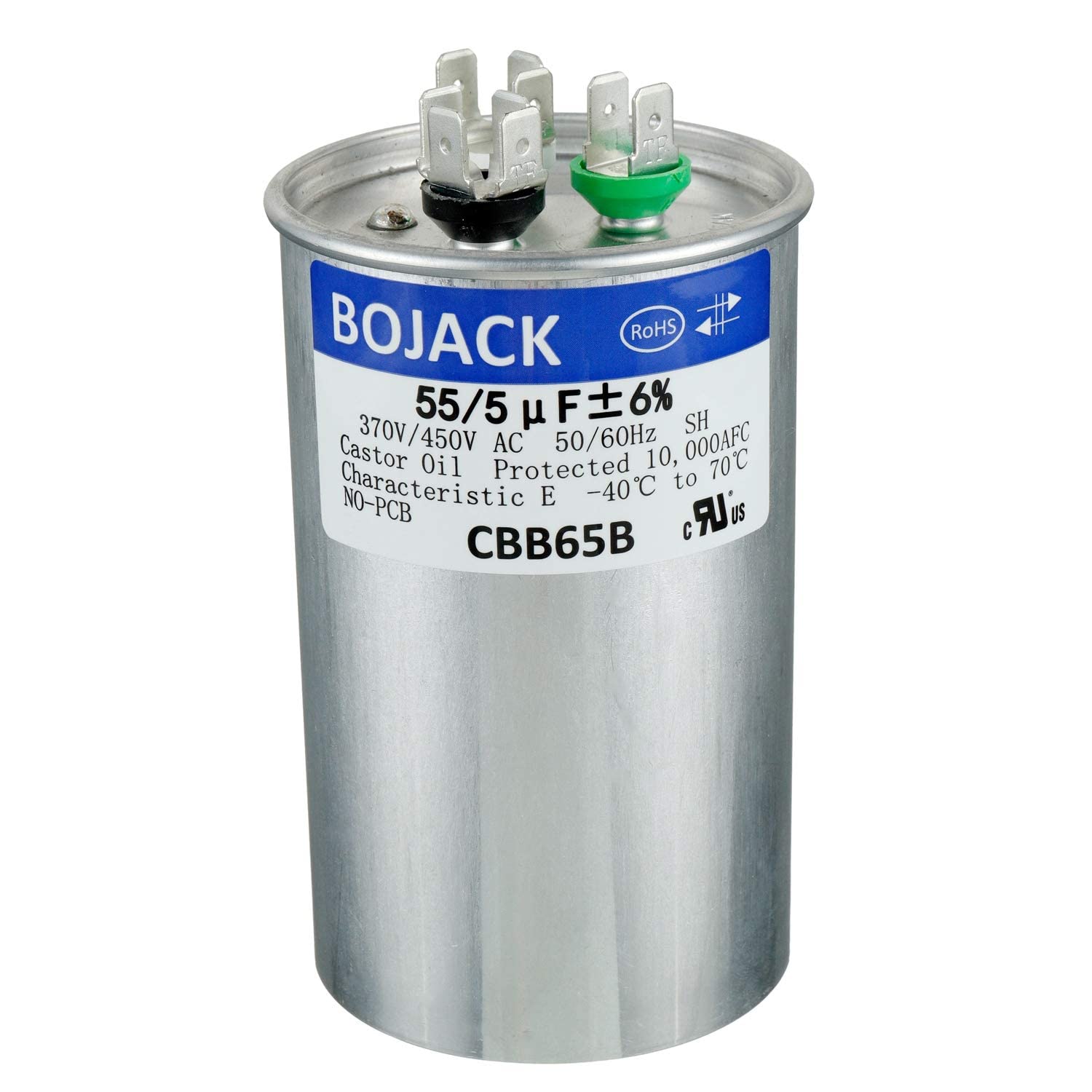

• BOJACK 55+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor

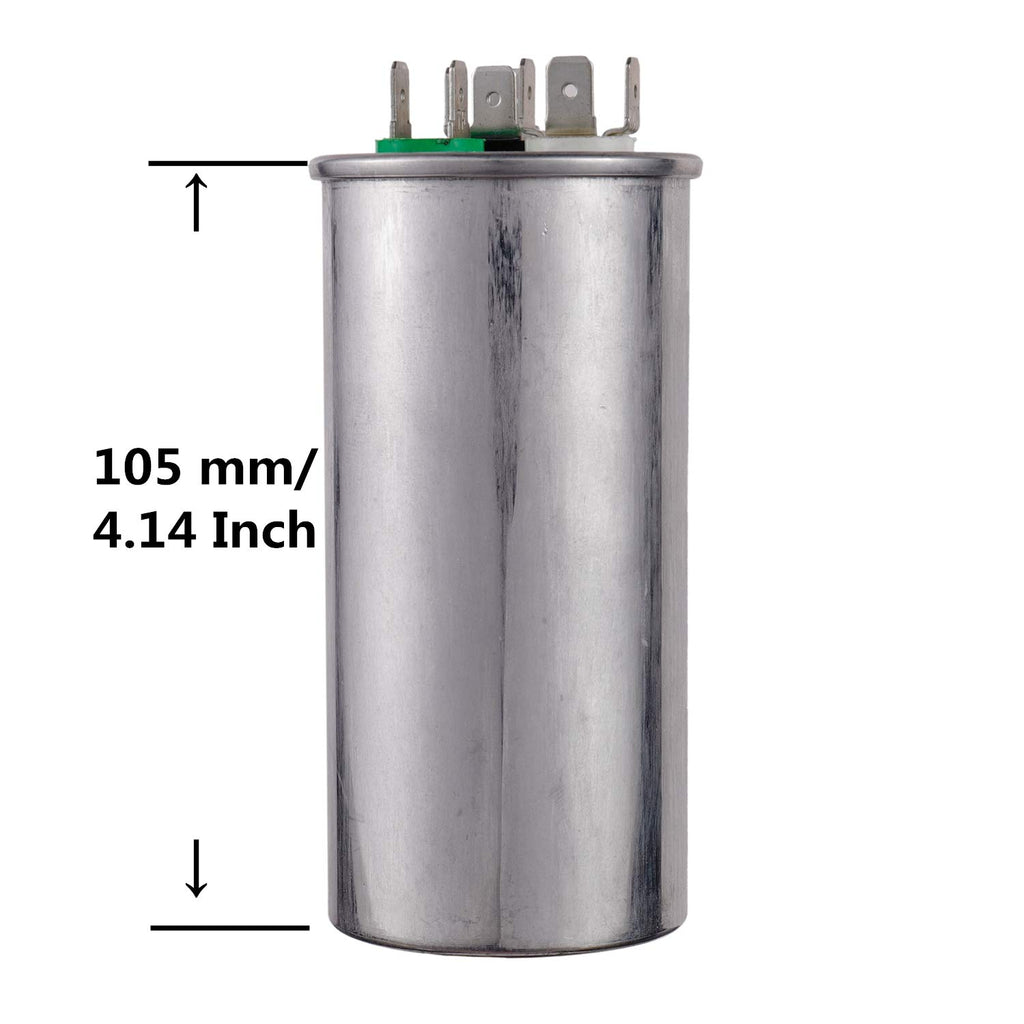

• Capacitor dimension: Diameter<2.56 inch> Height <4.14 inch>
• Operating temperature: -40 ℃ to +70℃/-104℉to+158℉,Safety rated: 10,000 AFC

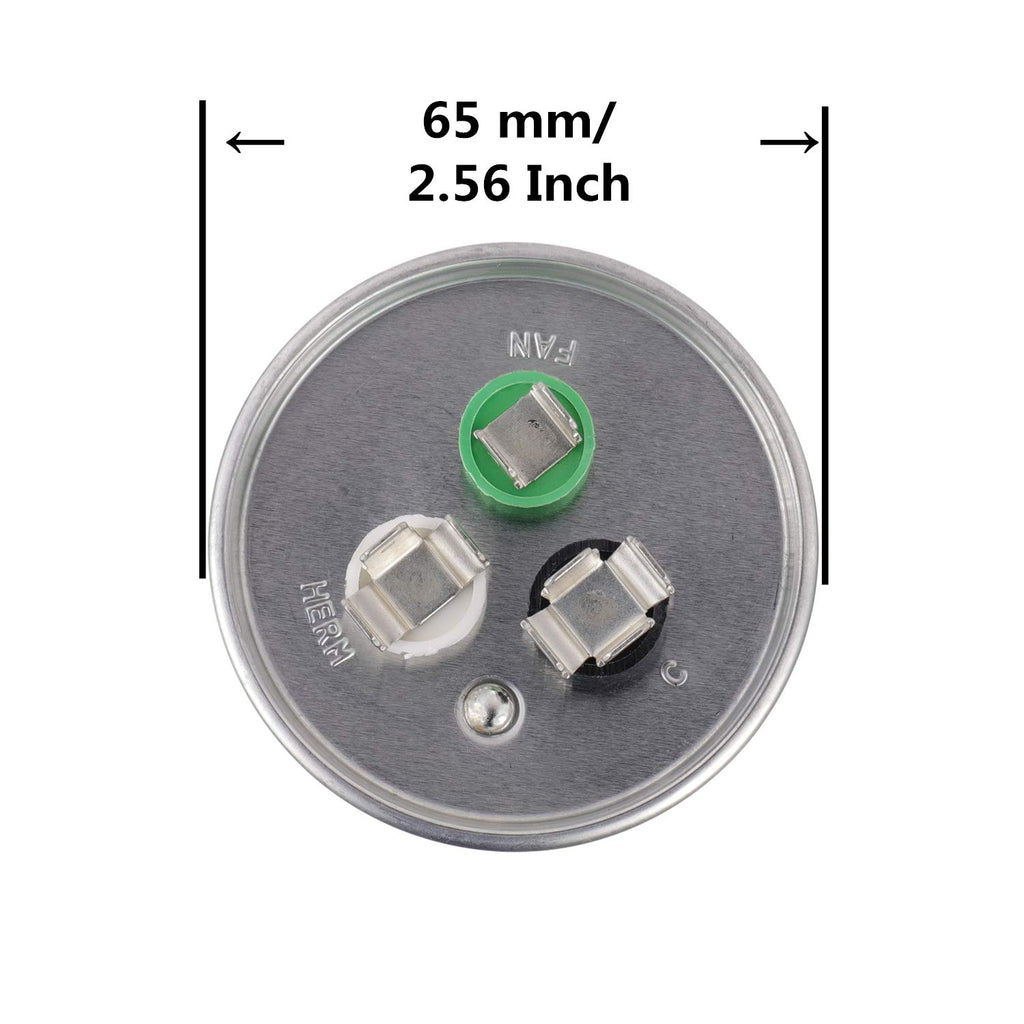

• Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
• Replacement for P291-5554RS , P291-5553R , TT-CAP-55/5/440 , cap050550440rtp , cap050550440rt , TRCFD555 , 97Z9839BZ3 , Z97F9839 , 97F9839 , 97F9839BX , CPT00670 , P2915554RS , HCKS550D050R440Z , TP-CAP-55/5/440R .

model number: BJ-CAP7

Part Number: BJ-CAP7

Details: BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 55+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter<2.56 inch> Height <4.14 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

EAN: 0768894138598

Package Dimensions: 4.9 x 2.7 x 2.6 inches
