Brand: Bowerful

Color: (6)Golden Yellow

Features:

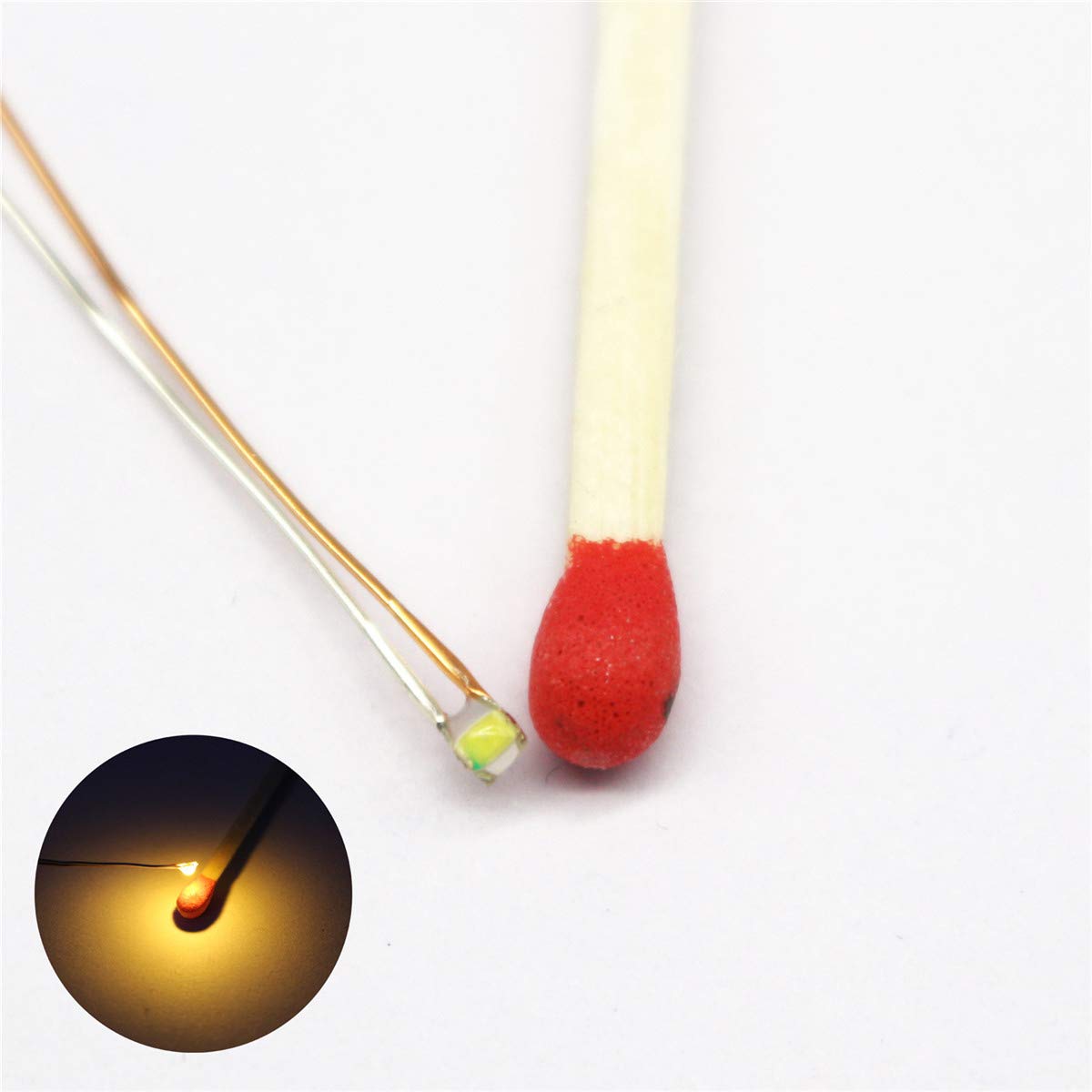

• Super small LED. Perfect Fit for small models & really tight places!
• LED is Heavy duty & Super Strong, Resin cover to protect the LEDs, LED size: 0603 LED (0.06*0.03*0.03 in.)
• All LEDs work in 3-3.3Vdc directly, 5V/9V/12V resistors are available for different voltage battery or power supply used

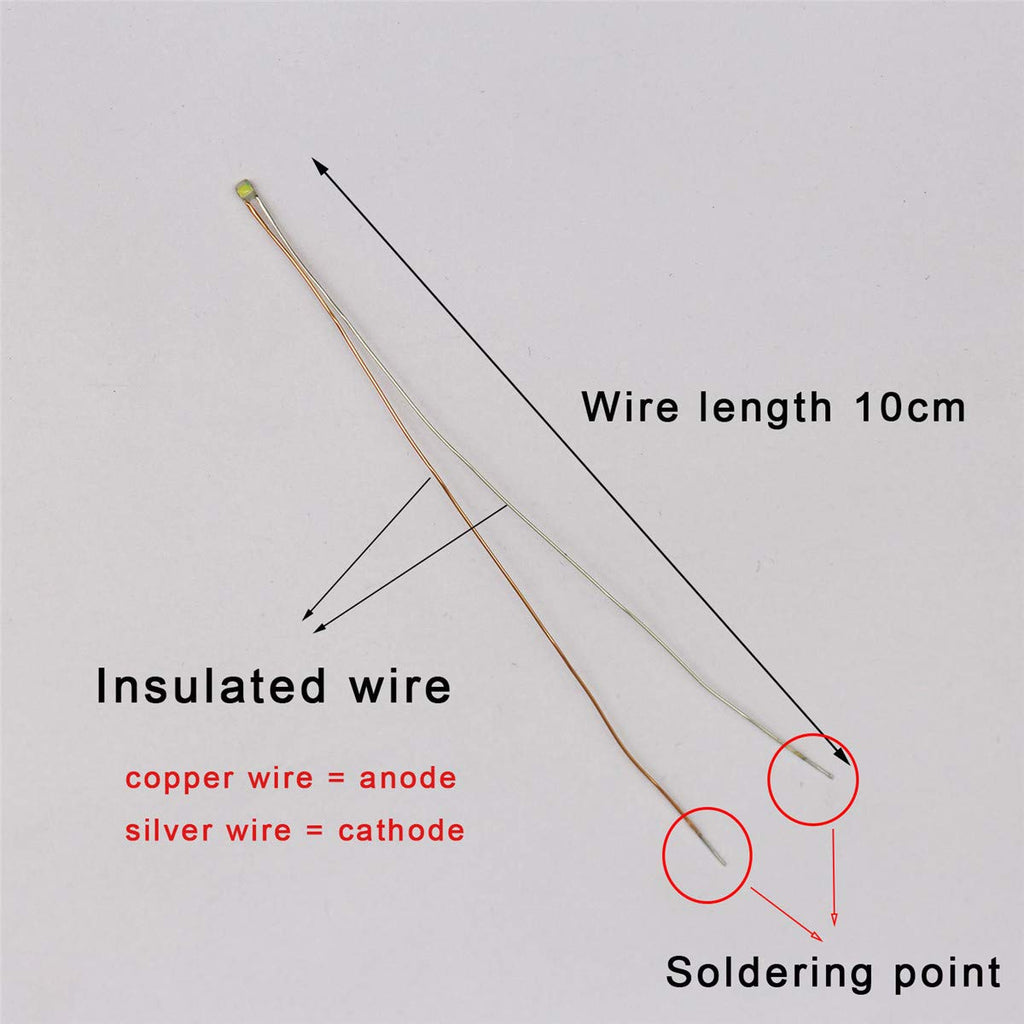

• The wire length is about 100 mm. For easy recognizable connecting, Anode is red wire, Cathode is silver wire
• Quantity: 50pcs, Emitting Color: Golden Yellow(This product is not included any battery, please be noted)

model number: 50pcs wired 0603 LED -3R-Y

Part Number: 50pcs wired 0603 LED -3R-Y

Details: This pre-wired LED is Super small with resin cover to protect, with 10cm wired,Super strong LEDs and wire,
The wire is bendable, it easy to fix any shape as you like

You can connect with any 3V battery directly

All LEDs work in 3-3.3 Vdc
Do not need add any resistor, it can work with normal 3V battery

If you want the LEDs work in other voltage,we provide below resistors in the package too
50 resistors (not pre-soldered) for 3.5~5V are included .
50 resistors (not pre-soldered) for 5~9V are included .
50 resistors (not pre-soldered) for 9~14V are included .

Specifications :
The LEDs size is : (length)06" X '03"(width) X 03"(height)
-Luminance intensity: 300 mcd / 120¡ã Viewing Angle
-Emitting color: Golden Yellow
-Forward voltage:3-3.3VDC Compatible.
(if you need the LEDs work in other voltage, please add resistor)
-Forward current Typical: 15mA or below; Max: 20mA
-Viewing angle:120¡ã Viewing Angle
Applications & Installations:
Suitable used in any small model, cosplay, small model building, Very low power consumption, and high luminous intensity
Recommended voltage is 12V

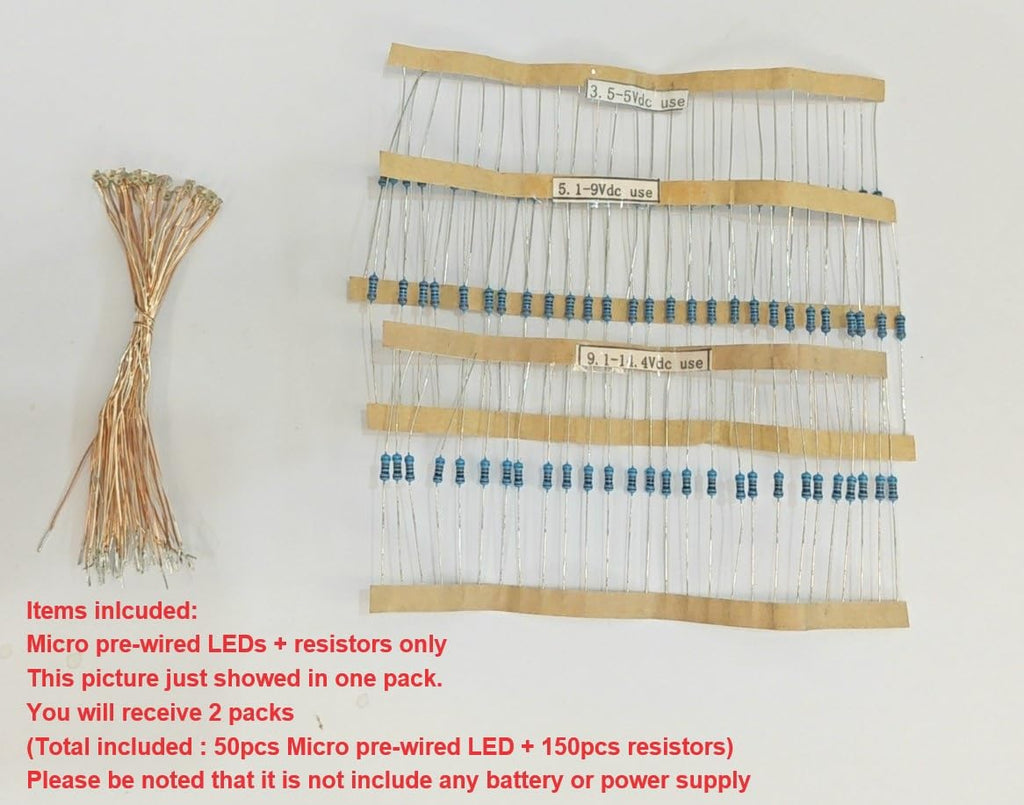

Package included :
50pcs pre-wired SMD LEDs (pre-soldered) with 10cm wire length
50 resistors (not pre-soldered) for 3.5~5V are included .
50 resistors (not pre-soldered) for 5~9V are included .
50 resistors (not pre-soldered) for 9~14V are included .
Search "bowerful led" for more related leds

EAN: 0743815846615

Package Dimensions: 8.9 x 5.5 x 0.6 inches
