Brand: ChillWaves

Color: Silver

Features:

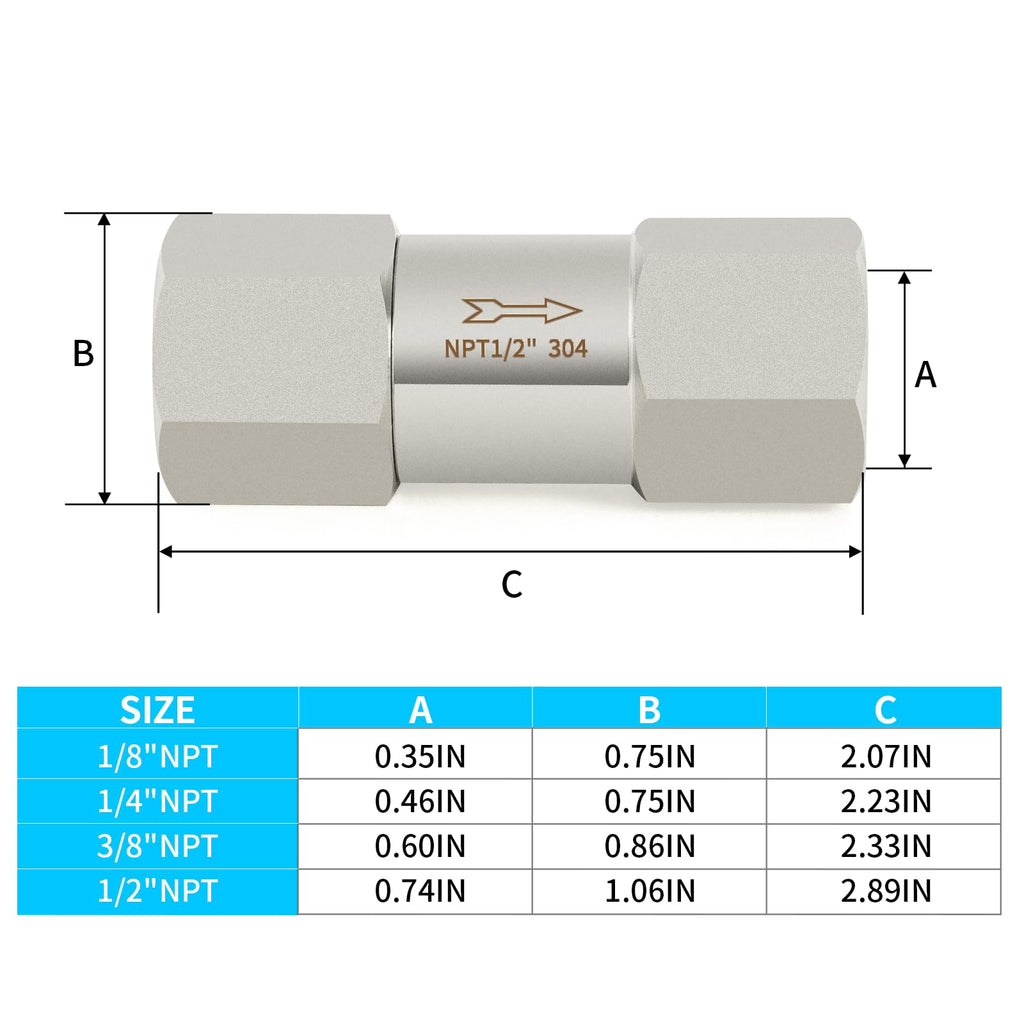

• Size - 1/2" NPT Female Thread Split Check Valve. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
• MATERIAL - Made of high quality 304 stainless steel, it has excellent oxidation and corrosion resistance, high compressive strength, abrasion resistance, durability, good low temperature toughness, heat resistance and mechanical properties，with stainless steel spring, vertical and horizontal installation.

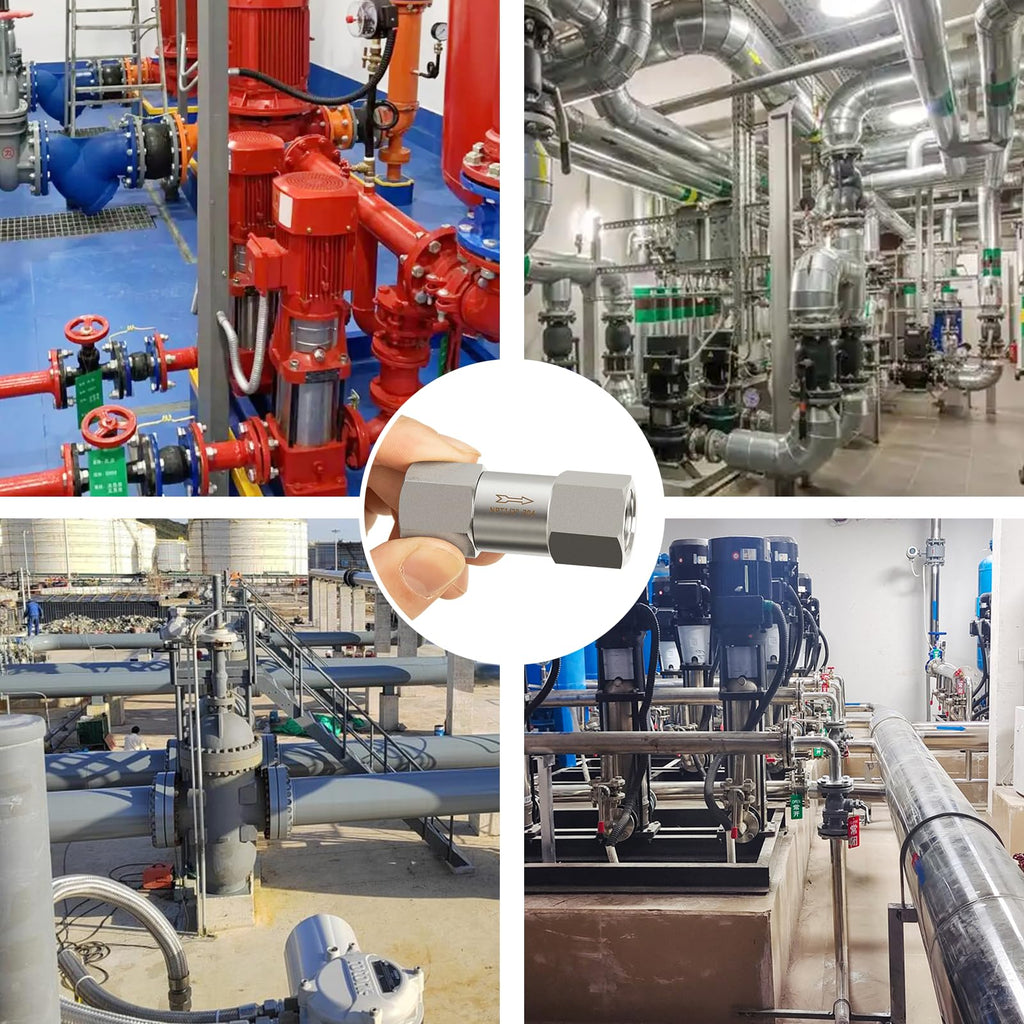

• USE - Used to prevent backflow of the medium in the pipeline, through the medium itself to flow and thus automatically open and close the valve flap, only allows the medium to flow in one direction, it is suitable for gases, water, oil.
• WORKING PRESSURE & TEMPERATURE - 2500PSI maximum working pressure, 6PSI cracking pressure, temperature range -32°F to +338°F (-0°C to +170°C)
• PRODUCT DESIGN - By the valve body and valve cover two parts, the structure is more complex but stable, suitable for large diameter pipeline, especially in the need for frequent maintenance or the maintenance of the convenience of the higher requirements of the occasion, good sealing, easy to install and dismantle, the valve body is thickened, the inner wall polishing treatment, smooth and not easy to scale.

model number: CWJX425

Part Number: CWJX425

Details: 304 Stainless Steel check valve is to rely on the flow of the medium itself and automatically open and close the valve flap, used to prevent the medium backflow valve, also known as check valve, check valve, backflow valve, and back pressure valve. Belongs to a kind of automatic valve, mainly used for one-way flow of media on the pipeline, only allows the medium to flow in one direction, can be applied to water, oil, non-corrosive gases and other media.
Product introduction：
1.The valve flap closes quickly, the water hammer pressure is small.
2.Horizontal or vertical pipeline can be used, easy to install.
3.Smooth flow path, low fluid resistance.
4.Sensitive action, good sealing performance.
5.Short stroke of valve flap, small closing impact force.
6.long service life, reliable performance.

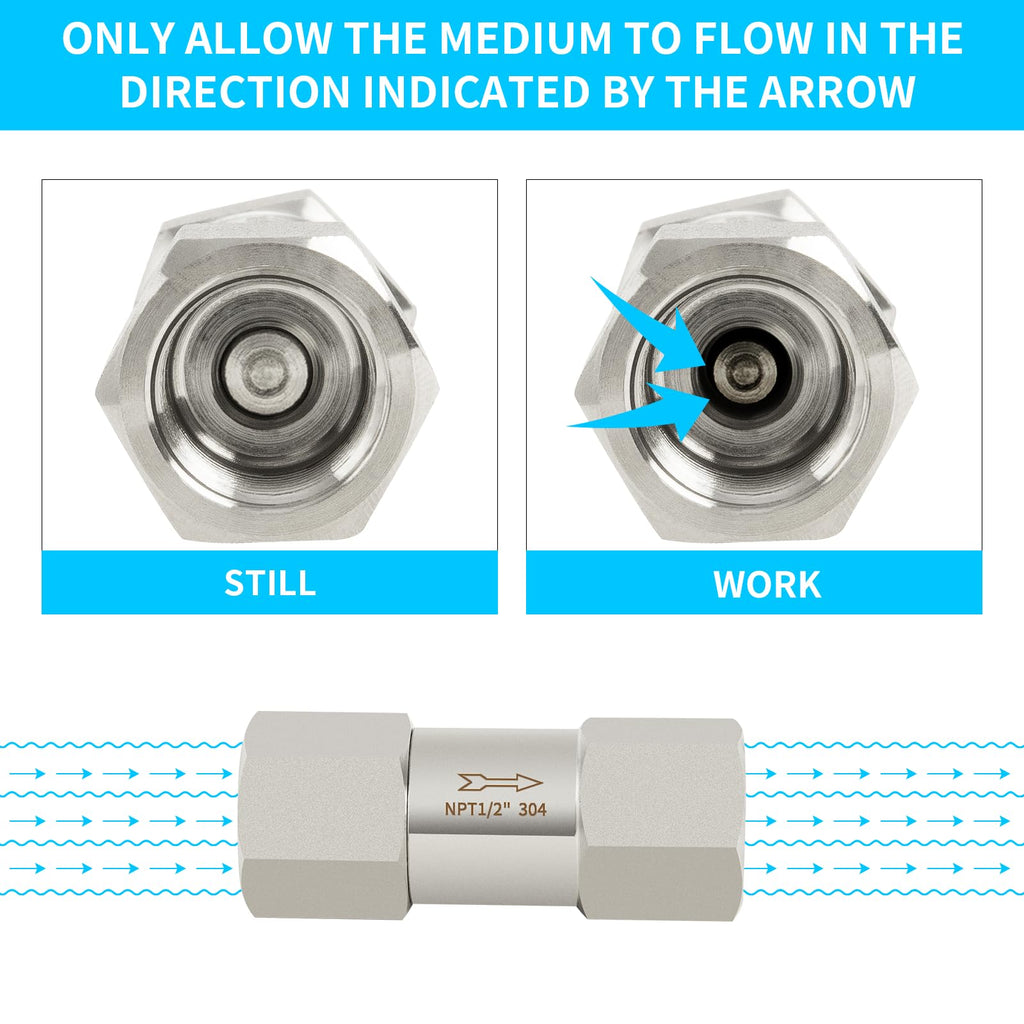

7.Installation needs to pay attention to the direction of media flow should be consistent with the direction of the arrow identified in the valve body.
8.When purchasing check valve, consider the application as this will affect the material type, shape, size and desired durability. Valves are available in both female and male threads and come in many shapes, styles, sizes and schedules (wall thickness)
PACKAGE INCLUDED:
1 × 1/2" NPT Female Split Check Valve
1 x Teflon tape "

Package Dimensions: 10.0 x 5.0 x 0.5 inches
