Brand: Diversitech

Color: Red

Features:

• 120V AUTOMATIC CONDENSATE PUMP: Efficiently expels condensate or water discharge from HVAC/R equipment, providing a comprehensive solution for condensate management within the system
• 22' MAXIMUM LIFT: The 120v water pump elevates vertically up to 22 feet once the condensate in the reservoir reaches a designated level, ensuring consistent and dependable performance every time
• MADE FOR STANDARD APPLICATIONS: The high-performance 120-volt motor is designed to handle condensate temperatures of up to 160 degrees Fahrenheit effectively

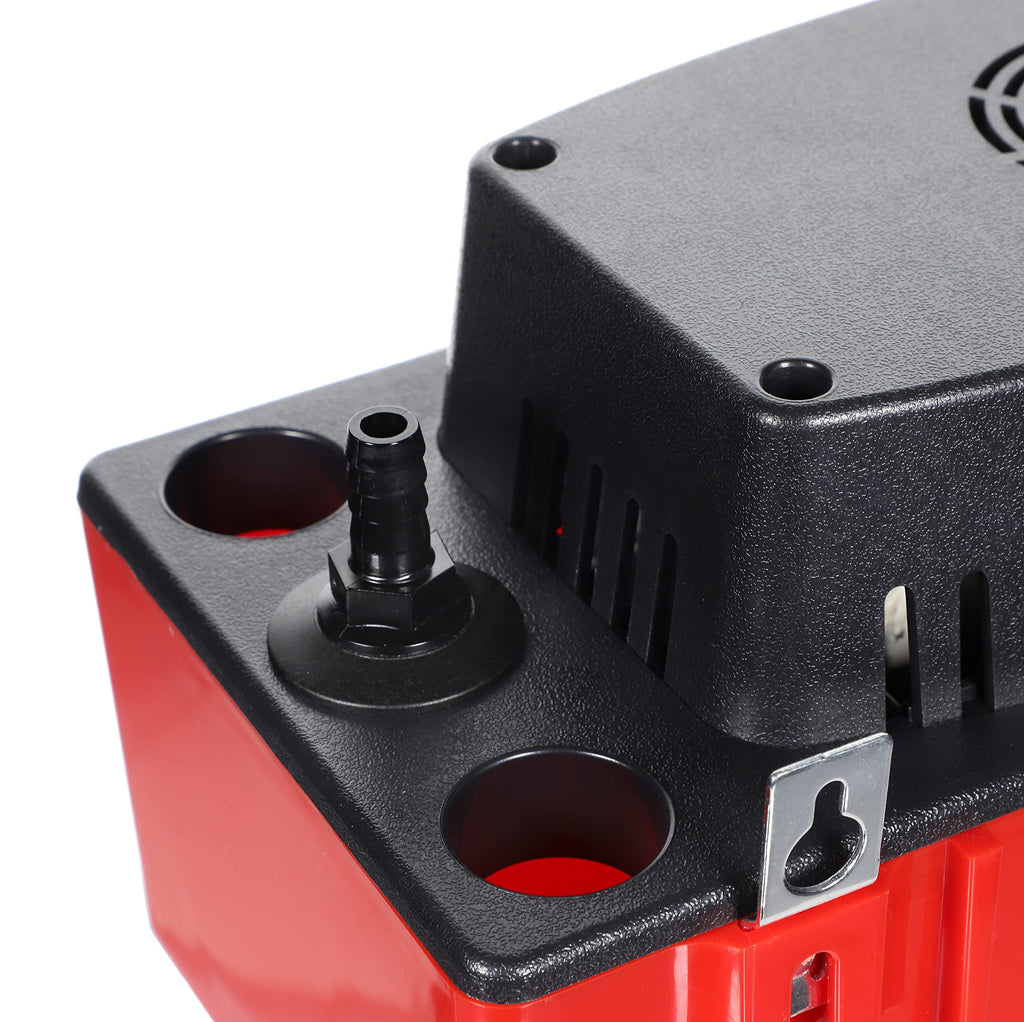

• USER-FRIENDLY FEATURES: The ULTRACP-22 series shares many of the top-notch features similar to those of the CP-22, including robust metal mounting tabs, 4 inlet holes, and a removable check valve
• COMPACT, ECO-FRIENDLY DESIGN: An excellent cost-effective option, this condensate water pump is built on the reliable CP-22 design, offering enhanced convenience with its compact and user-friendly profile

model number: CP-22

Part Number: CP-22

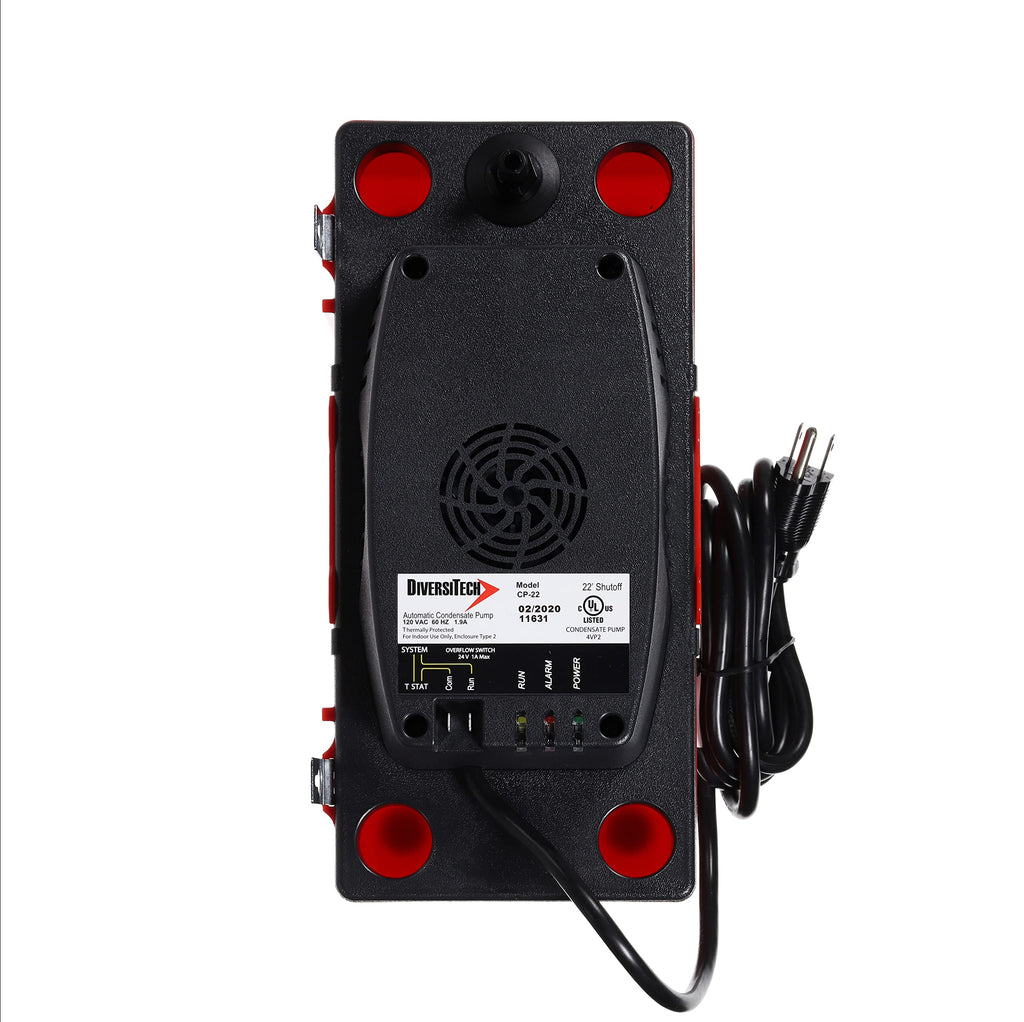

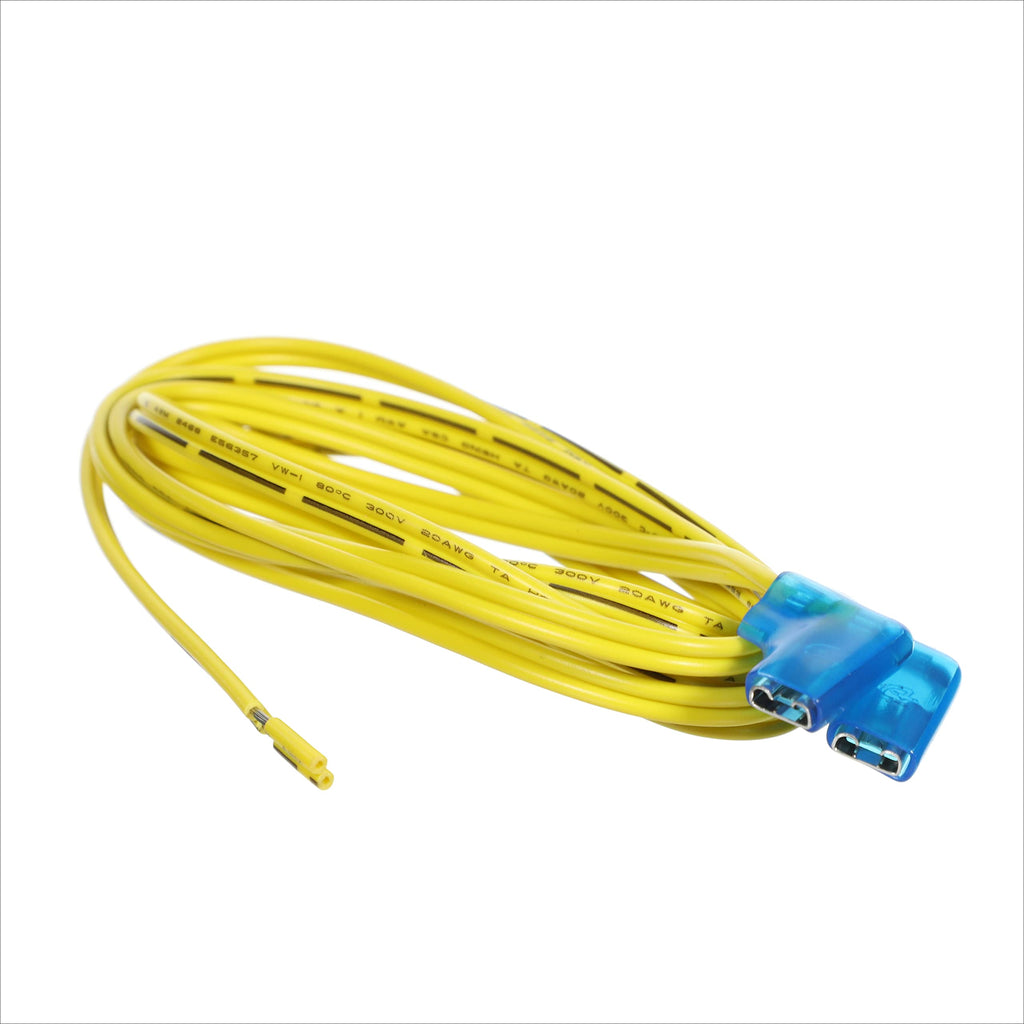

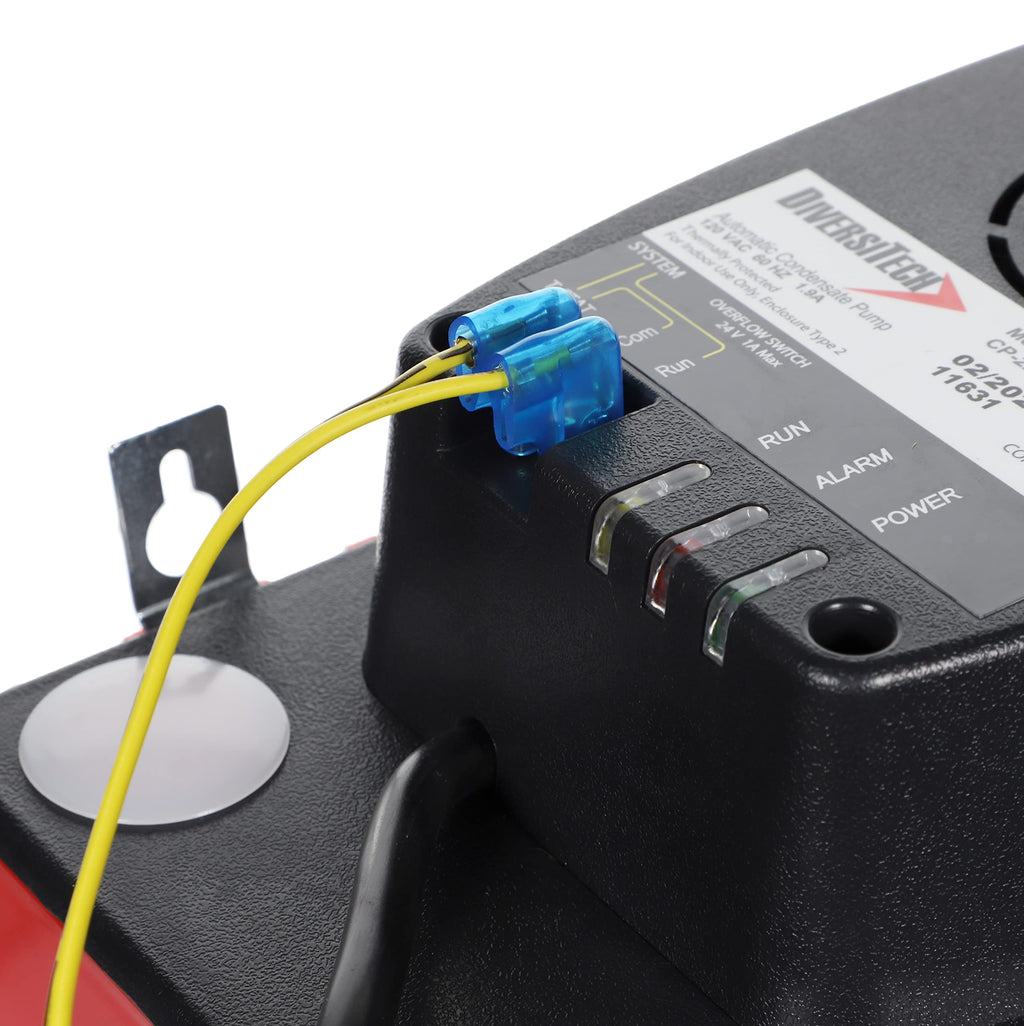

Details: This condensation pump is designed for efficient handling of condensate from high-efficiency condensing furnaces and boilers, even those producing acidic condensate. With a 22-foot lift capacity, it outperforms standard pumps by 2 feet. Integrating the CP22 into your system is effortless, thanks to the 1/4-inch quick connect terminals for the built-in overflow switch. Two terminals offer flexibility for connecting air handler shutdown and optional alarm systems as required. Featuring shatterproof stainless steel hangtabs for easy mounting at 8-inch intervals. Indicator lights—red, yellow, and green—clearly display the pump status: green for power applied, yellow for pump operation, and red for high-level alarm. The float, made of foamed polyethylene, ensures durability, chemical resistance, and longevity. Unlike trapped air floats that sink or expanded polystyrene (EPS) floats, this float simply floats. With four inlet holes—more than most pumps—installation versatility is maximized, and reinforced walls enhance durability. Rubber feet reduce noise by dampening vibration, while an elastomeric motor mounting gasket isolates vibration. Additionally, a removable check valve facilitates easy cleaning. Founded in 1971, DiversiTech® Corporation is North America’s largest manufacturer of equipment pads and a leading manufacturer and supplier of components and related products for the heating, ventilating, air conditioning, and refrigeration (HVAC/R) industry.

EAN: 0095247091263

Package Dimensions: 11.8 x 6.8 x 6.1 inches
