Brand: EEEEE

Features:

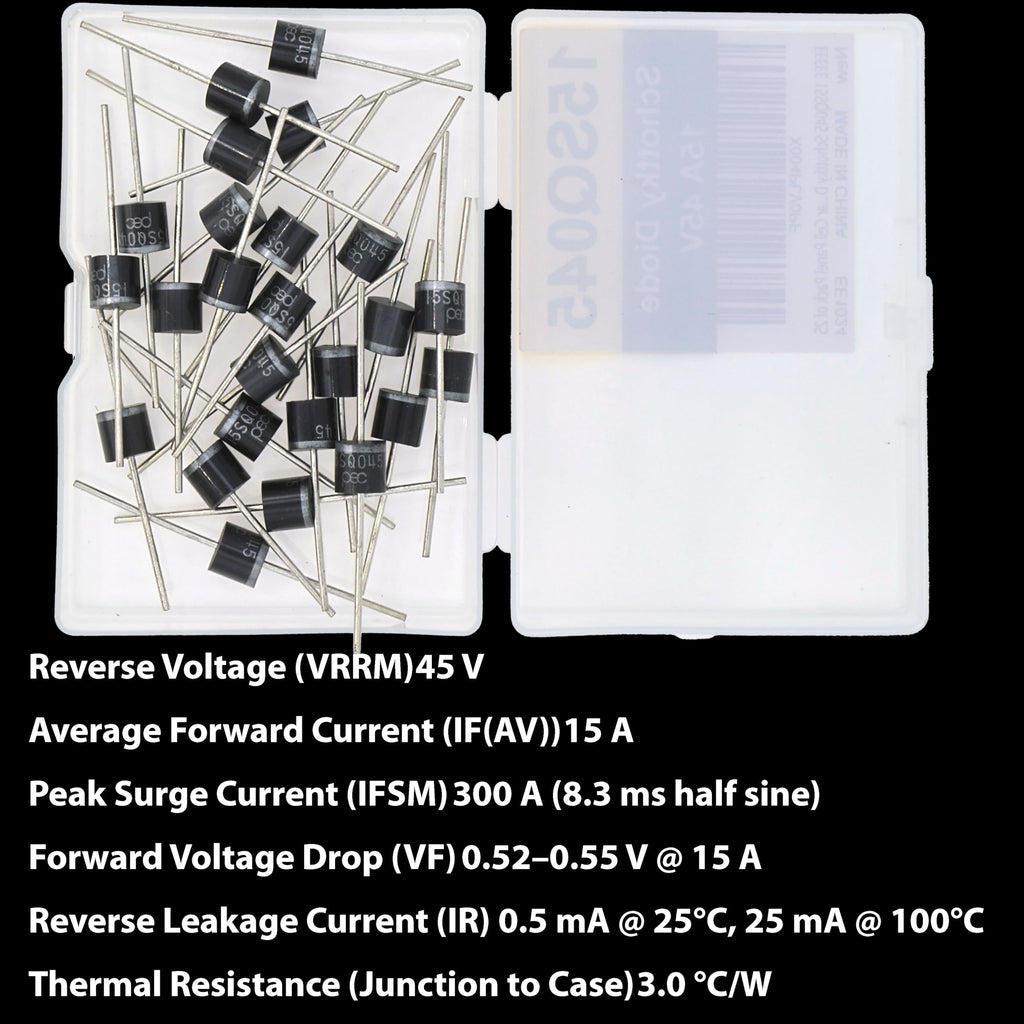

• The 15SQ045 is a Schottky rectifier diode rated for 15 A continuous forward current and 45 V reverse voltage, optimized for low-voltage, high-current applications. Its Schottky design provides an ultra-low forward voltage drop (~0.45 V), improving efficiency and reducing heat generation. It offers fast switching with negligible reverse recovery time, ideal for high-frequency power supplies, DC-DC converters, and polarity protection. Packaged in TO-220AC or similar, it ensures good heat dissipation and reliable operation from –65 °C to +150 °C.
• Low Forward Voltage Drop – Around 0.45 V, reducing power loss and improving efficiency in low-voltage circuits.
• High Current Capacity – Handles 15 A continuous forward current, suitable for high-load applications.
• Fast Switching Speed – Virtually no reverse recovery time, ideal for high-frequency power conversion.
• Low Heat Generation – Less voltage drop means reduced thermal stress, allowing smaller heat sinks.
• Rugged Packaging – TO-220AC or similar package provides excellent heat dissipation and mechanical durability.

model number: EE1024

Part Number: EE1024

Package Dimensions: 3.5 x 2.9 x 0.7 inches
