Brand: Hosyond

Features:

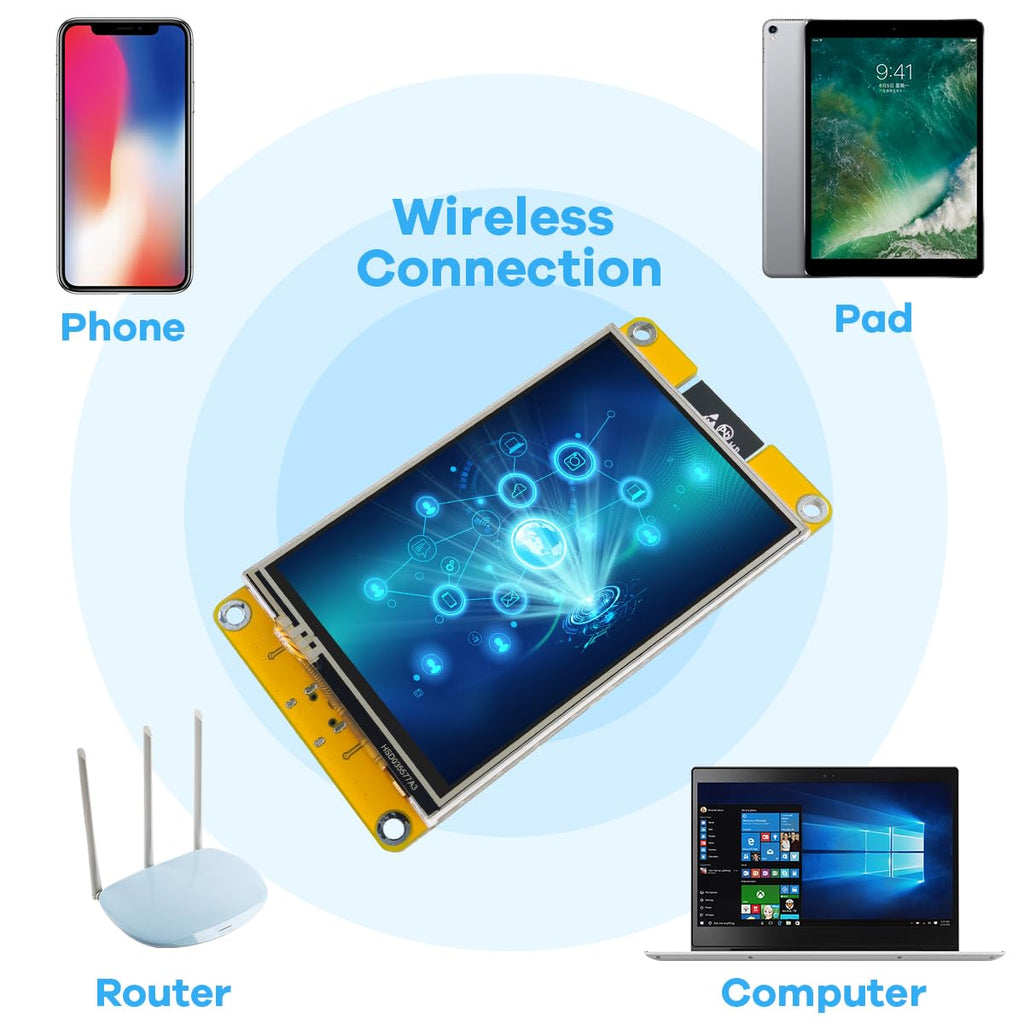

• Controller: Adopts ESP32-32E module, dual-core MCU, integrated Wi-Fi and Bluetooth, main frequency up to 240MHz, memory of 520KB SRAM and 448KB ROM, 4MB flash memory.

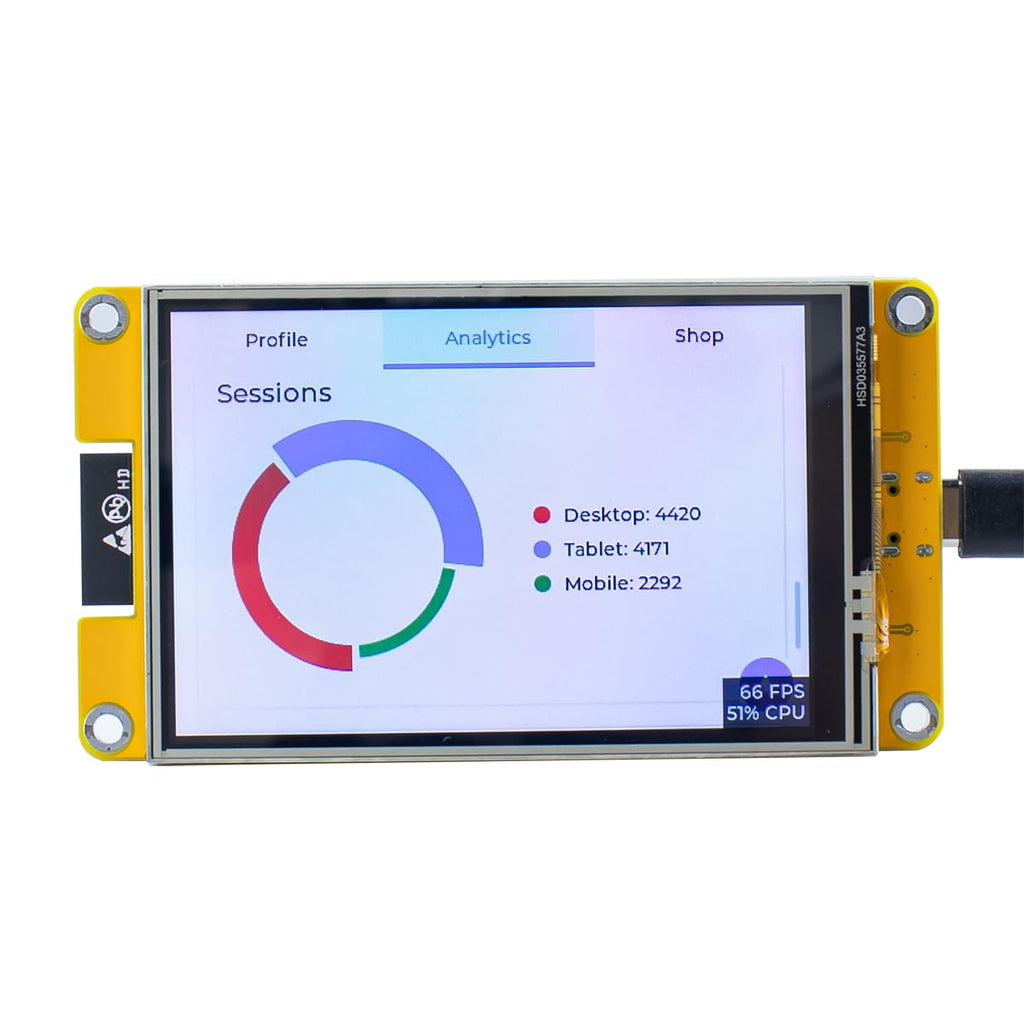

• Touch Screen: 3.5-inch LCD color screen, resolution of 320x480, supports 16-bit RGB 65K color display, rich colors, with resistive touch function.

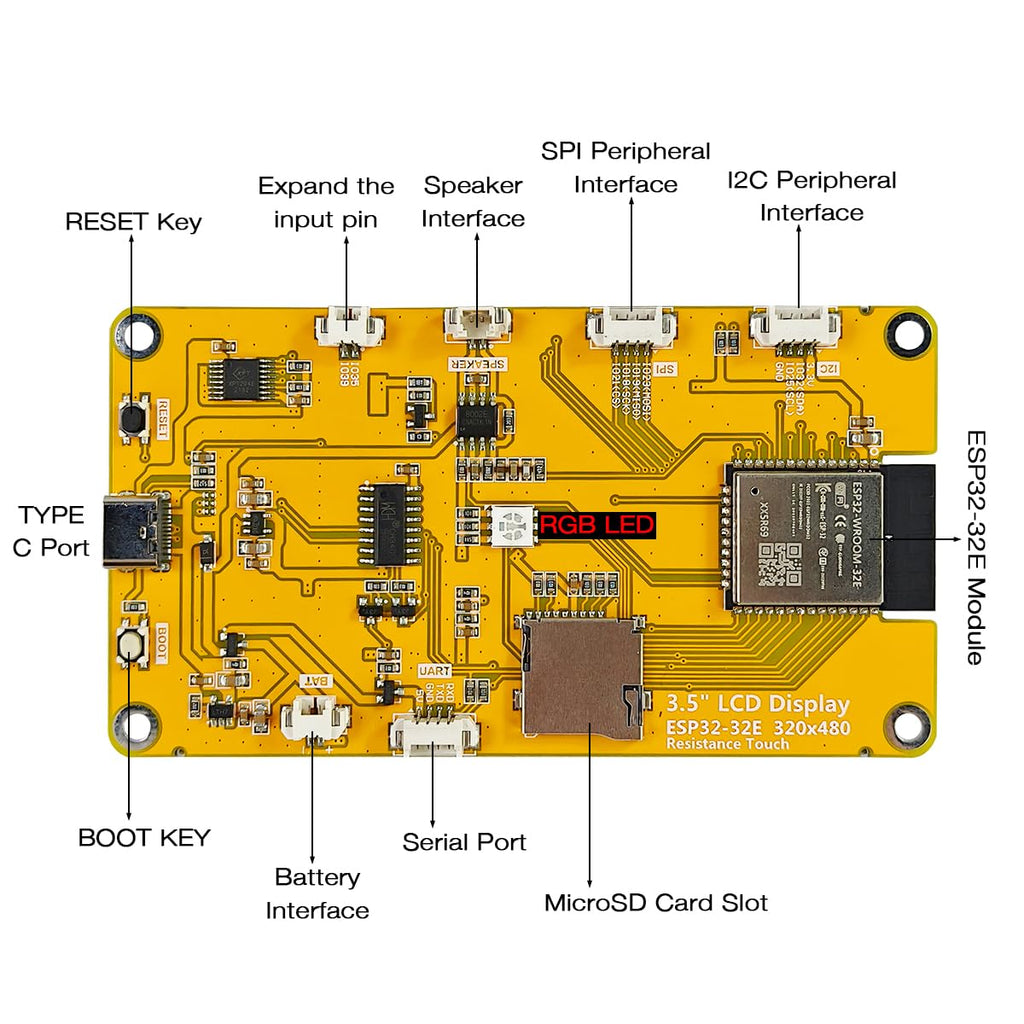

• Rich Expansion Interface: Equipped with TF card slot, serial port interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO interface.
• Multi-function: Contains LCD display, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.
• Convenient development: Provides compatible Arduino library functions and sample programs, supports one-click download of programs, and supports Arduino IDE, ESP IDE, Micropython and Mixly development.

Details: Features:
●3. 5-inch color screen, support 16 BIT RGB 65K color display, display rich colors
●320X480 resolution
●The sample program has been programmed in the factory and can be plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate rapid secondary development
●Support one-click download program
●Military-grade process standards, long-term stable work
●Supports lithium battery power supply, supports both charging and discharging, and has over charging and over discharging protection

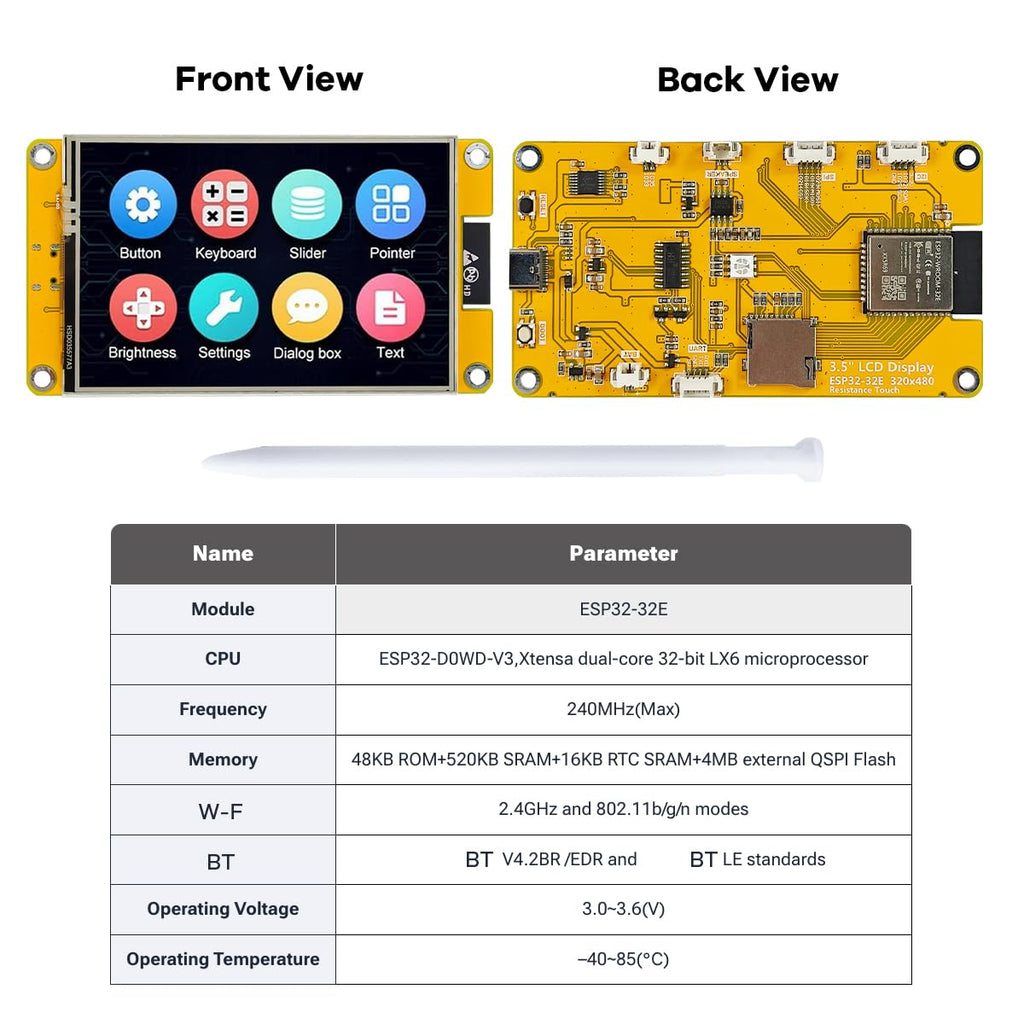

Product Parameters:
Display color: RGB 65K color
Size: 3.5 inch
Type: TFT
Driver chip: ST7796
Resolution: 320*480(Pixel)
Effective display area: 55.2*85(mm)
Module size: 55.34*101.5(mm)
View: >60°
Operating temperature: -20℃~70℃
storage temperature: -30℃~80℃
Operating Voltage: 5V
Power consumption: About 115mA
Product weight: About 50g

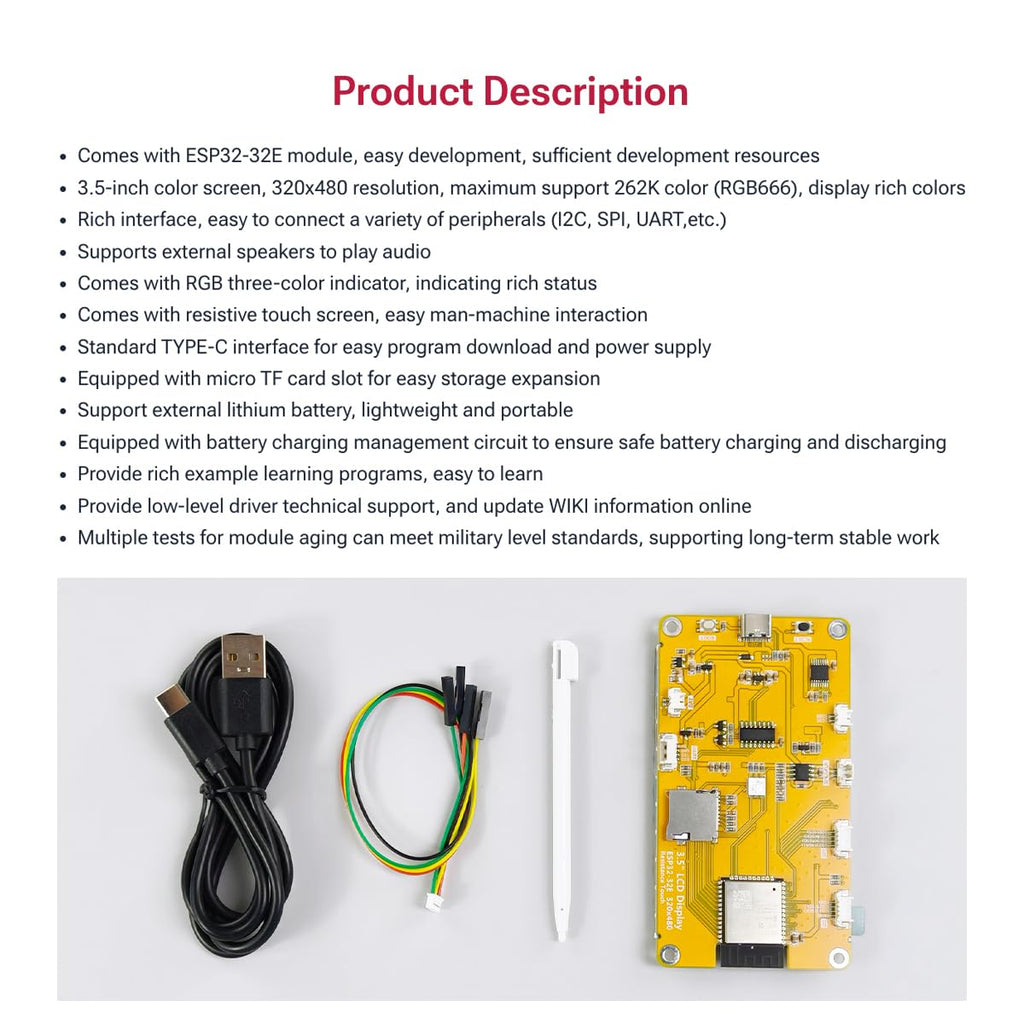

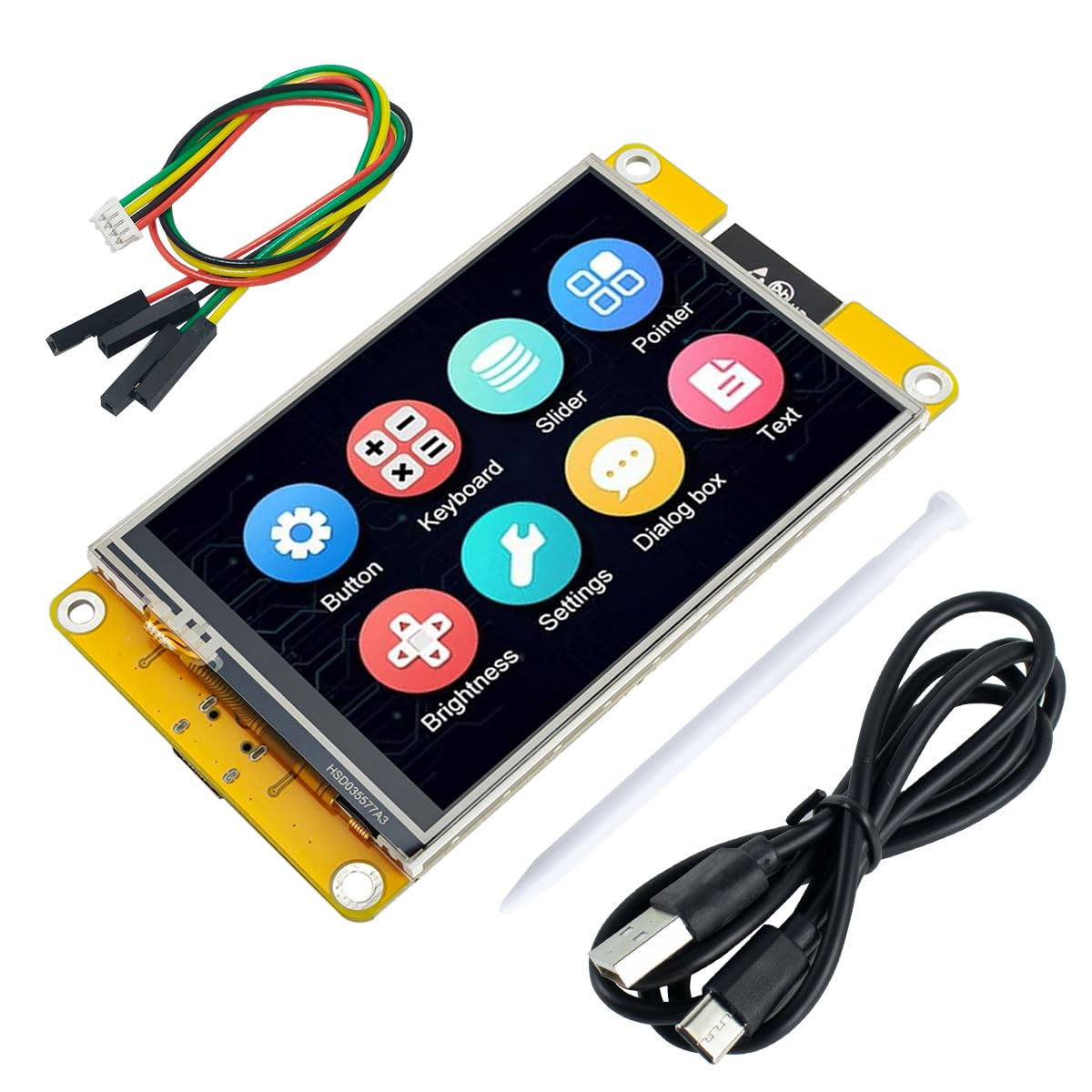

Package includes:
1 x 3.5'' ESP32 Dispaly Module
1 x USB Cable
1 x Touch Pen
1 x 4Pin Connector Cable

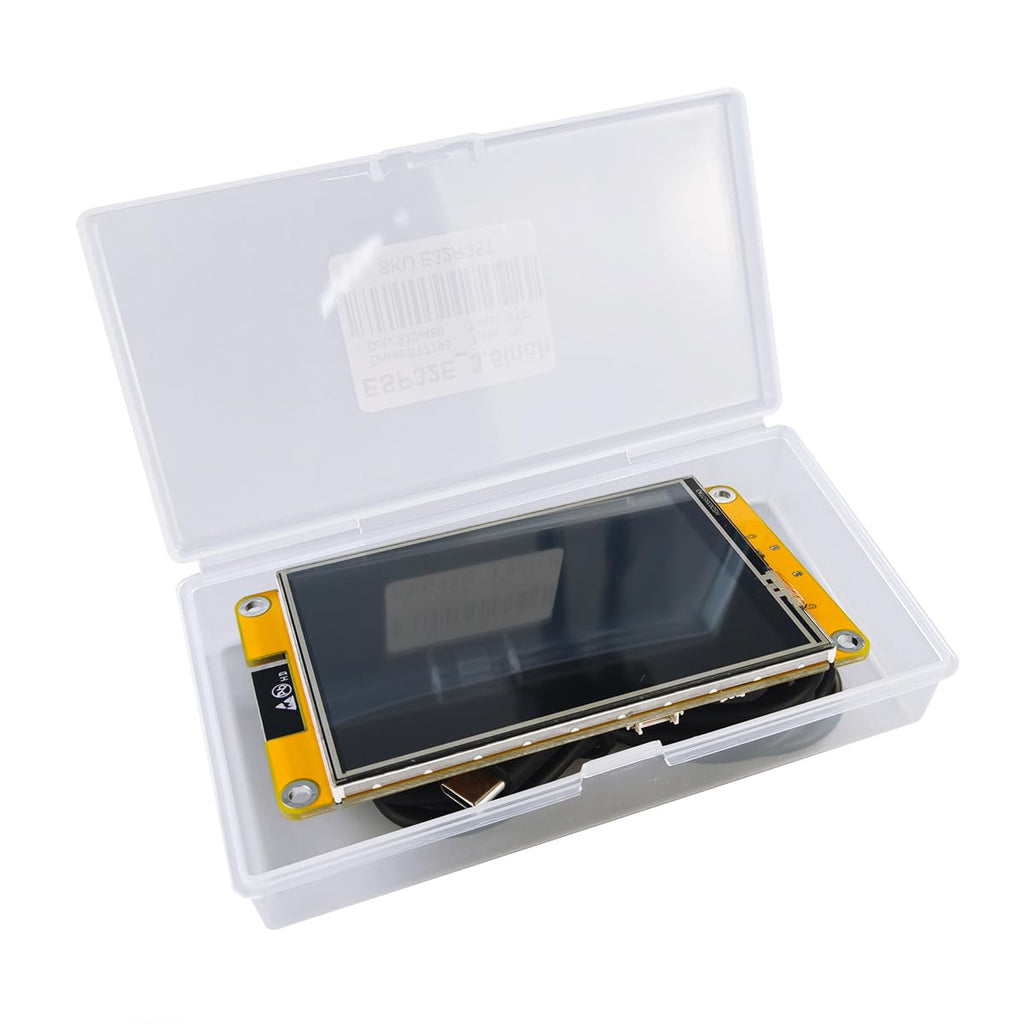

1 x Packaging box for display

EAN: 0768572762749

Package Dimensions: 5.9 x 4.0 x 1.7 inches
