Brand: EMNOOTI

Color: 4 Colors- Antique Brass, Black, Gold, Silver

Features:

• EXTRA LONG 12 FOOT CORD & QUALITY HARDWARE SET Included - A 12ft Electric Cord with polarized plug fit both Table Lamp and Floor Lamp Making / Repair. Wire ends are fitted with U-shaped connector,which make connection work simple .Qualified hardwares have good color matching and looks upgraded.

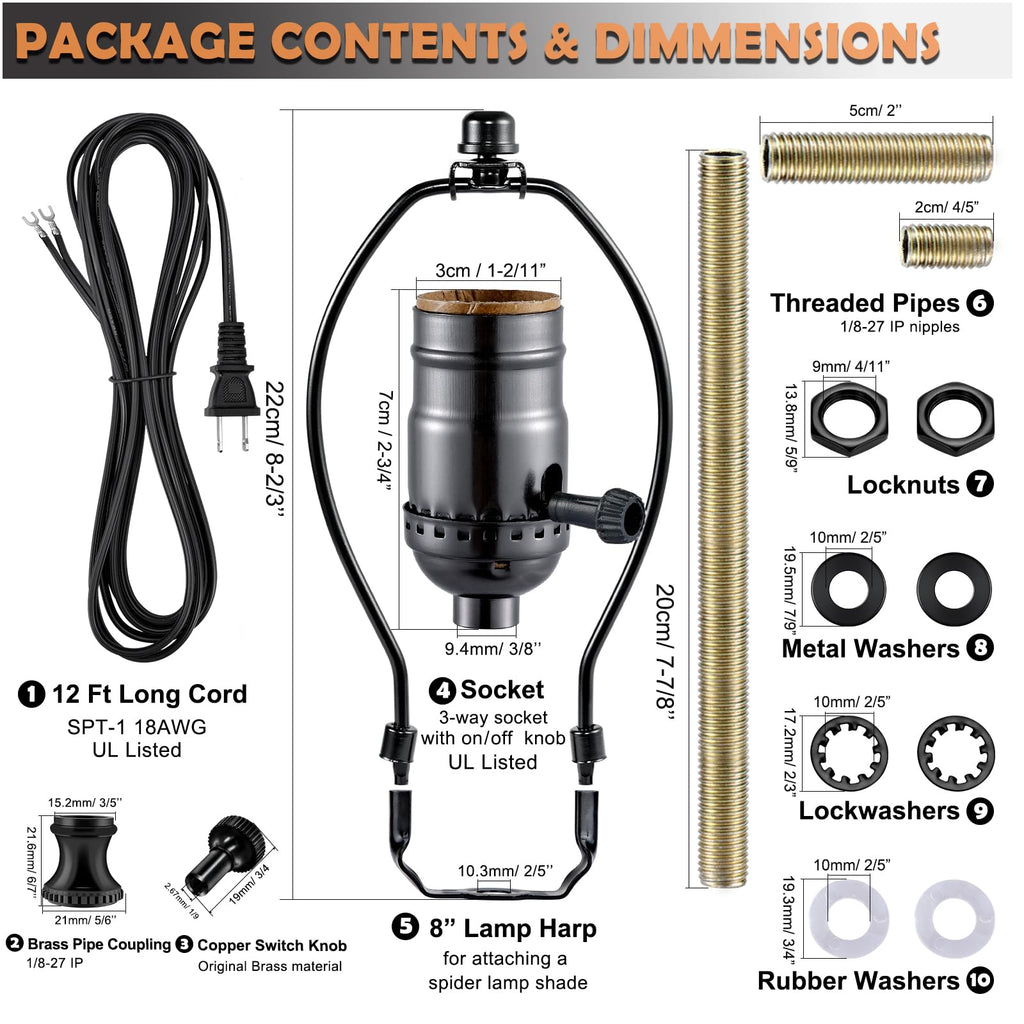

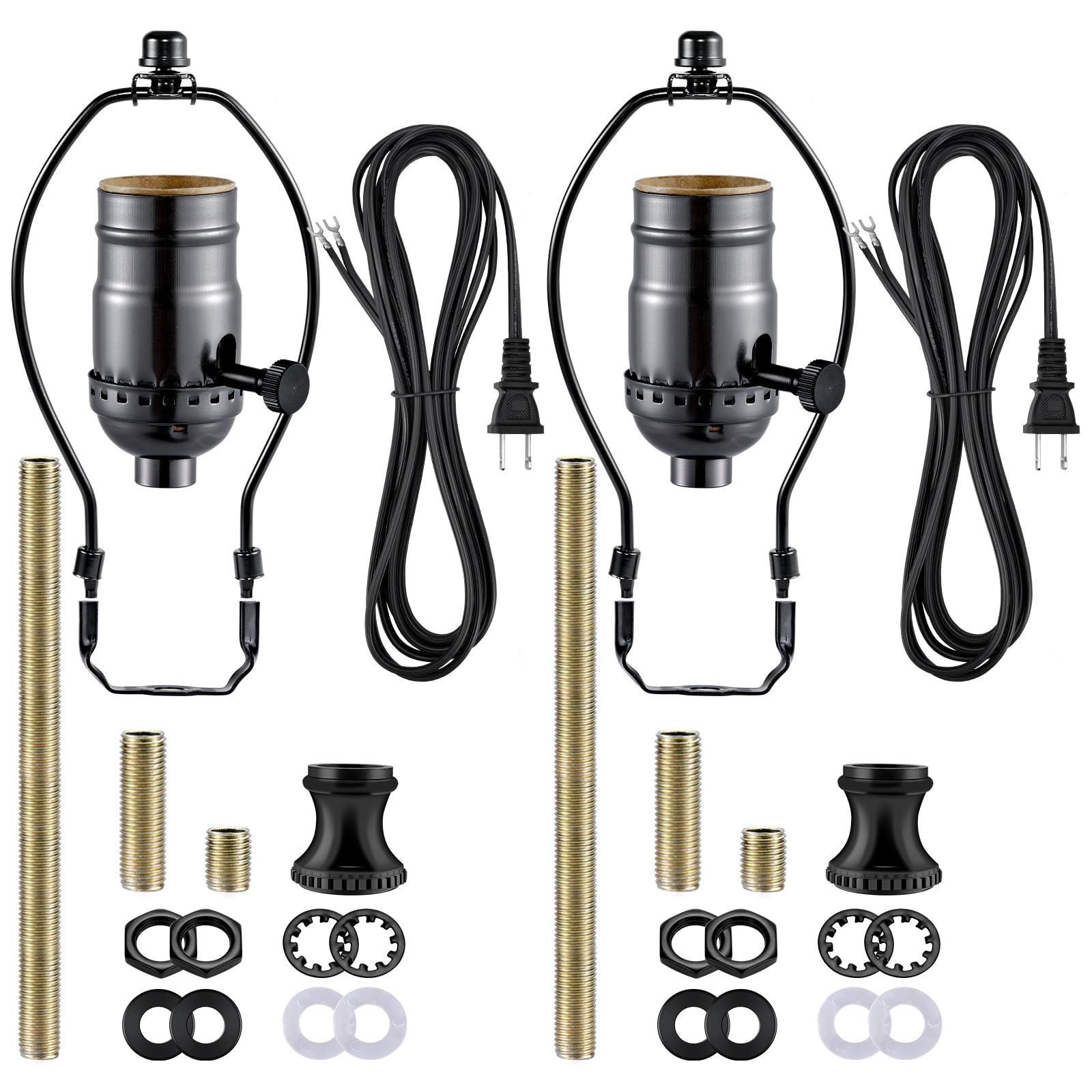

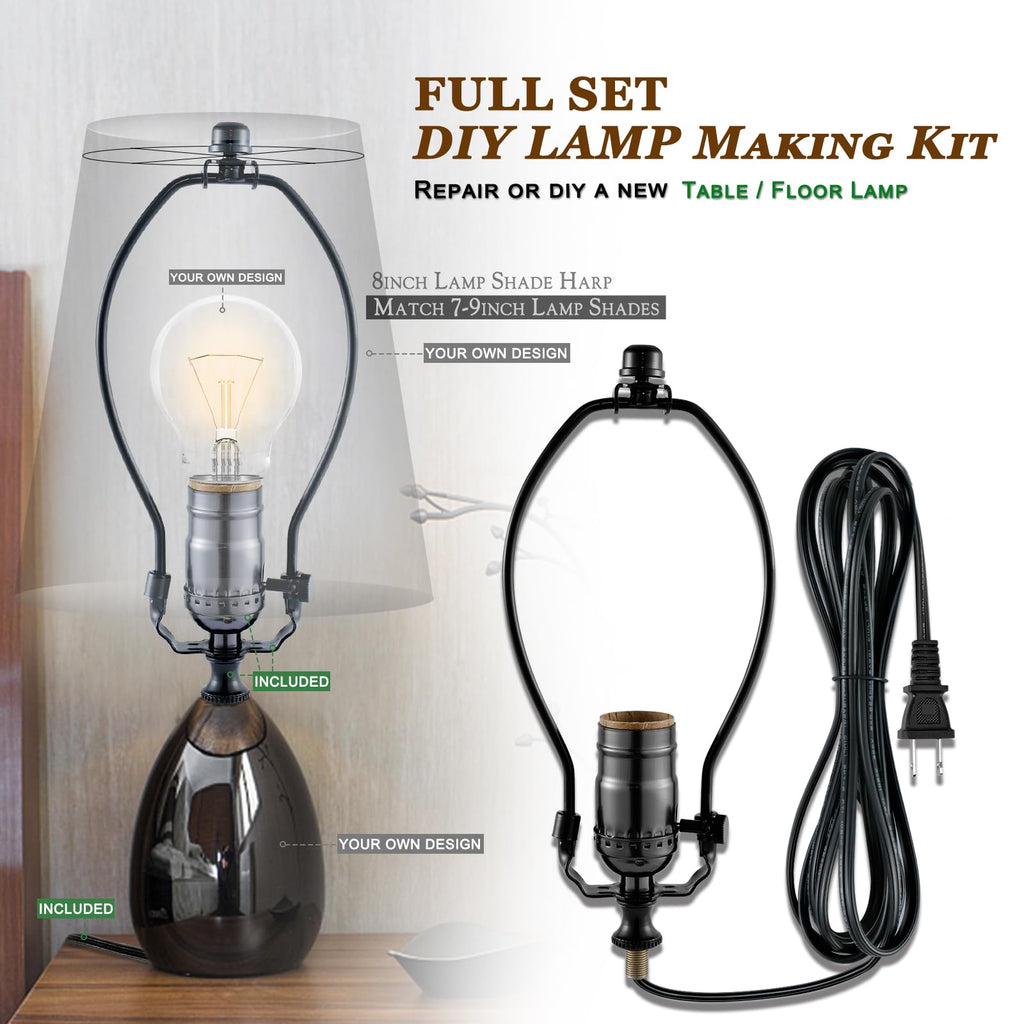

• UPGRADED LAMP PARTS IN COMPLETE LAMP SET - The kit includes a 3-way turn knob socket,a 12ft cord,a 8" lamp shade harp,a brass switch knob replacement, 4 kinds of washers and hex nuts, 1 brass pipe coupling, and 3 options of nipples -8", 2.5" ,0.8" for your different assembly needs. All essential parts included.
• UL LISTED ELECTRICAL COMPONENTS -Both the electric cord and the light socket are UL listed. Safe material for electrical installation.
• APPLICATION- Making & fixing table or floor Lamps;repair & rewire vintage lighting fixtures;create your own unique lamp from scratch or to repair an old one;ideal for creating new lamps from vases, bottles, or items with threaded openings.
• WITH INSTRUCTIONS to guide you assembly process. No matter repair a vintage lamp or make a new custom lighting,you will have clear idea on each step through the wiring instructions.

Part Number: VG107

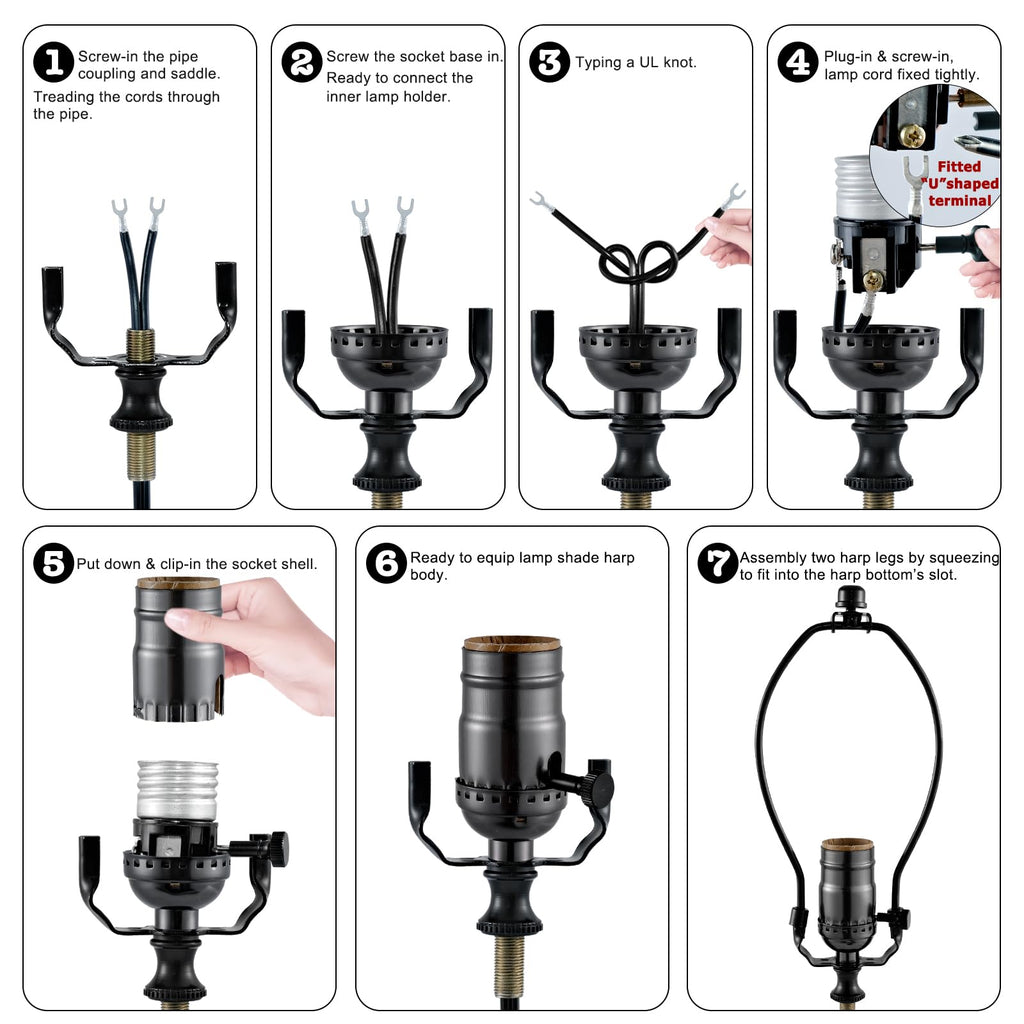

Details: Installation Instructions:
1. Collect the lamp base you like (a favored bottle, your handmade wood base ect..). prepare a light bulb, a 7-9inch lamp shade ready for use. Find a plier and a "+"shape screwdriver as the assembling tool. The parts of lamp DIY kit is complete.
2. Check steps instruction of instructions(wiring part).

REMARK:
a. Replace of Plastic Switch Knob
The kit include a copper switch knob for replacing.
*The 3-way switch is dimmable by rotate the switch knob in clockwise. If you rotate the knob in counterclockwise,the inner switching mechanism may be damaged.
But, replace the copper switch knob need to turn out the oringinal plastic knob(counterclockwise).
Hence, use a plier to fix the metal shaft between the knob and interior body,then remove the plastic knob by counterclockwise to avoid any inner damage.

b. Light Bulbs Compatible
3-Way light bulb is prefered to realize its low-medium-high dimmable function.
If you fit with a normal light bulb, dimmable function is losed. And it have faulty rate of short circuit.

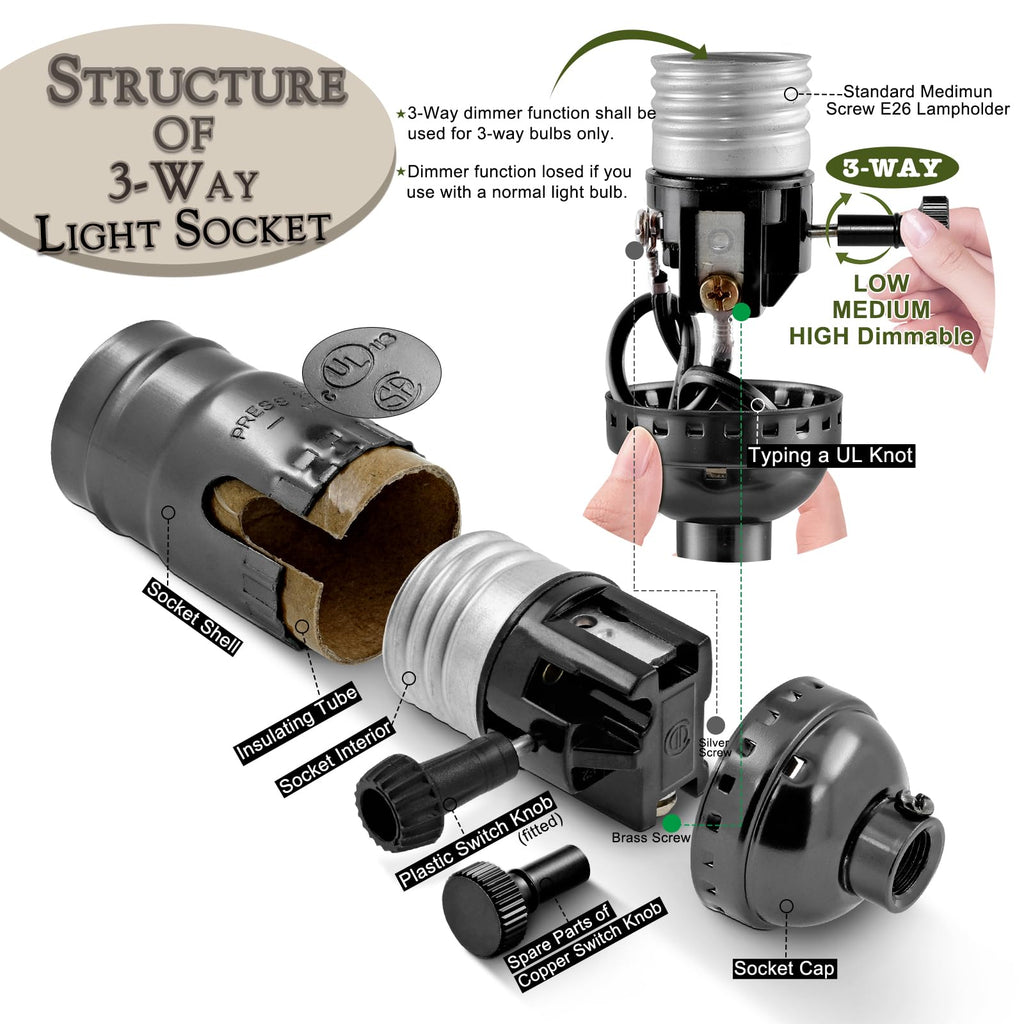

c. Wire Connection of Copper and Silver Screw
Copper screw is for firing line. Silver screw is for naught line. If your input power is normal alternating current(AC). Any wire could connect any screw.

Package Dimensions: 9.1 x 4.3 x 1.5 inches
