Brand: CHTAIXI

Features:

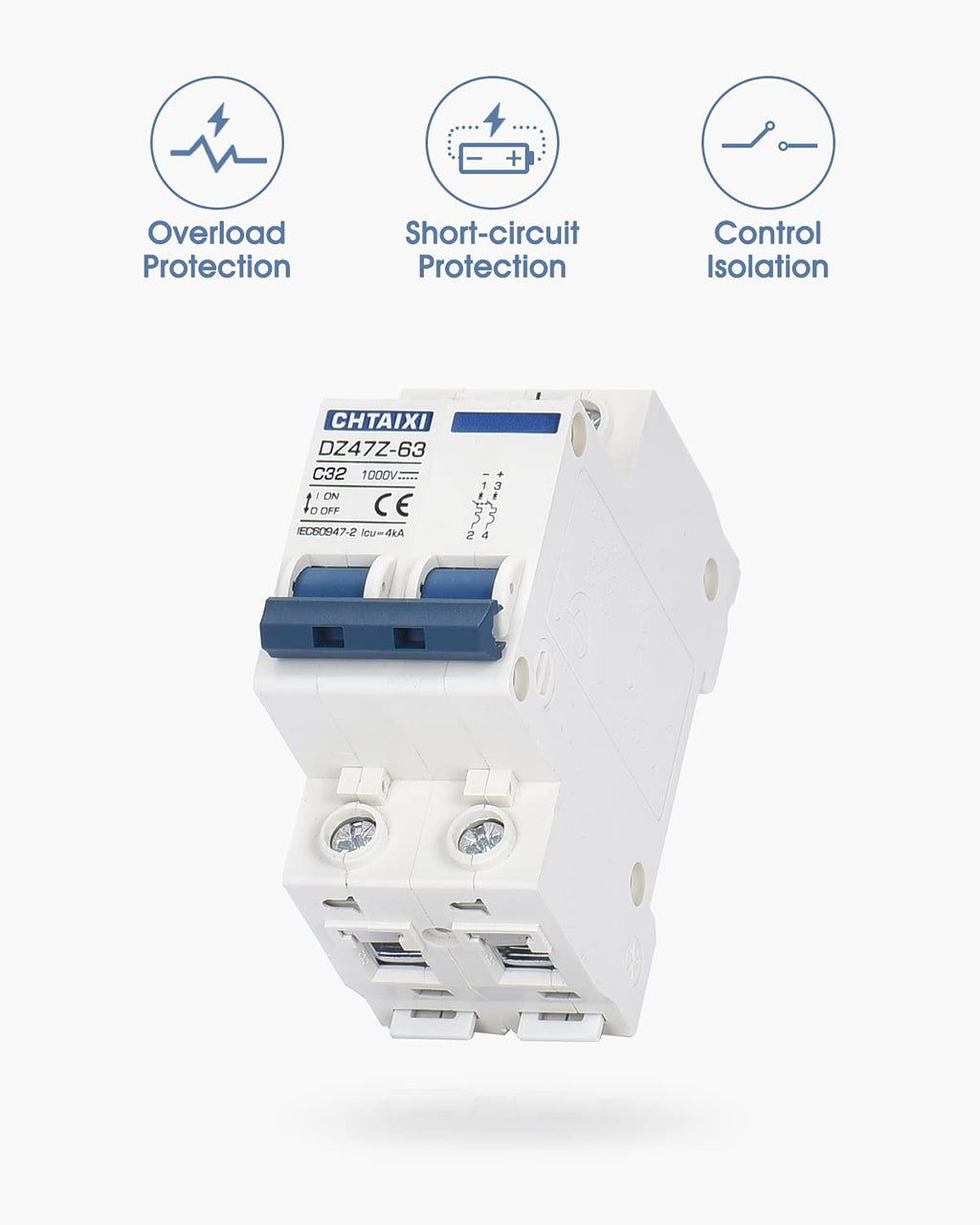

• FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
• FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.

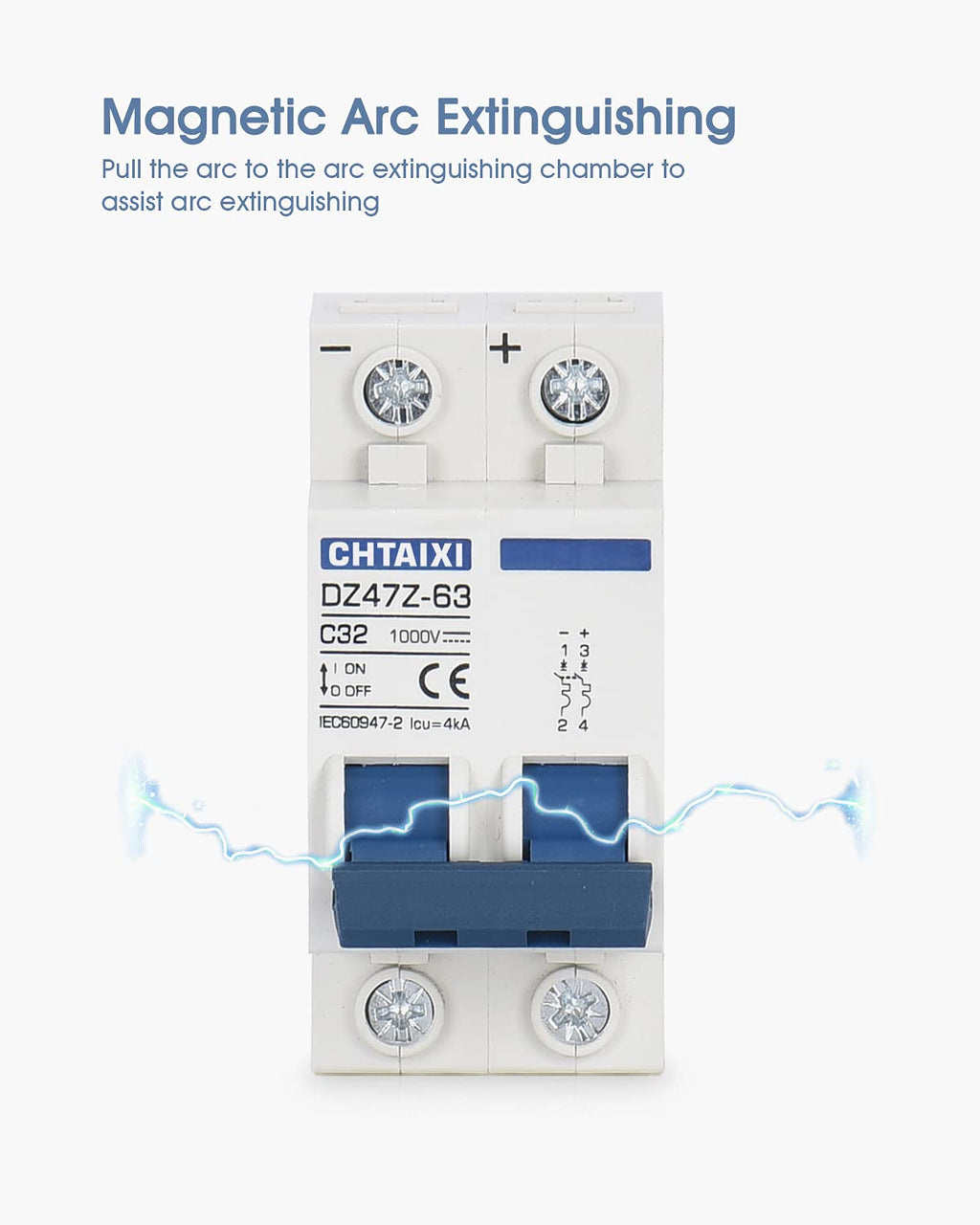

• ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
• APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.

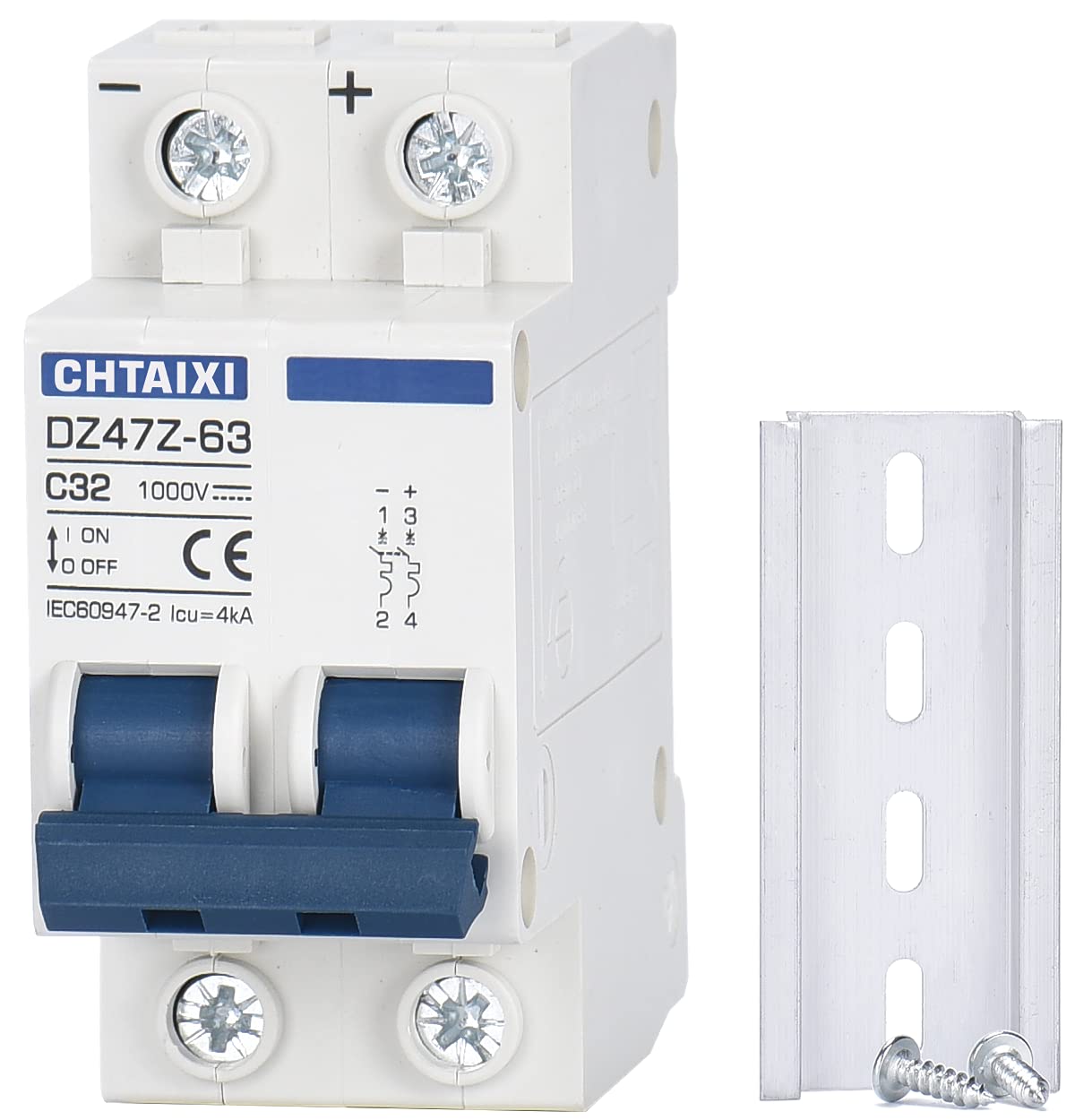

• INSTALLATION: Screw clamp wires, 35mm DIN rail mount.

model number: DZ47Z-63

Part Number: 47Z63-2P1000

Package Dimensions: 3.6 x 3.5 x 1.7 inches
